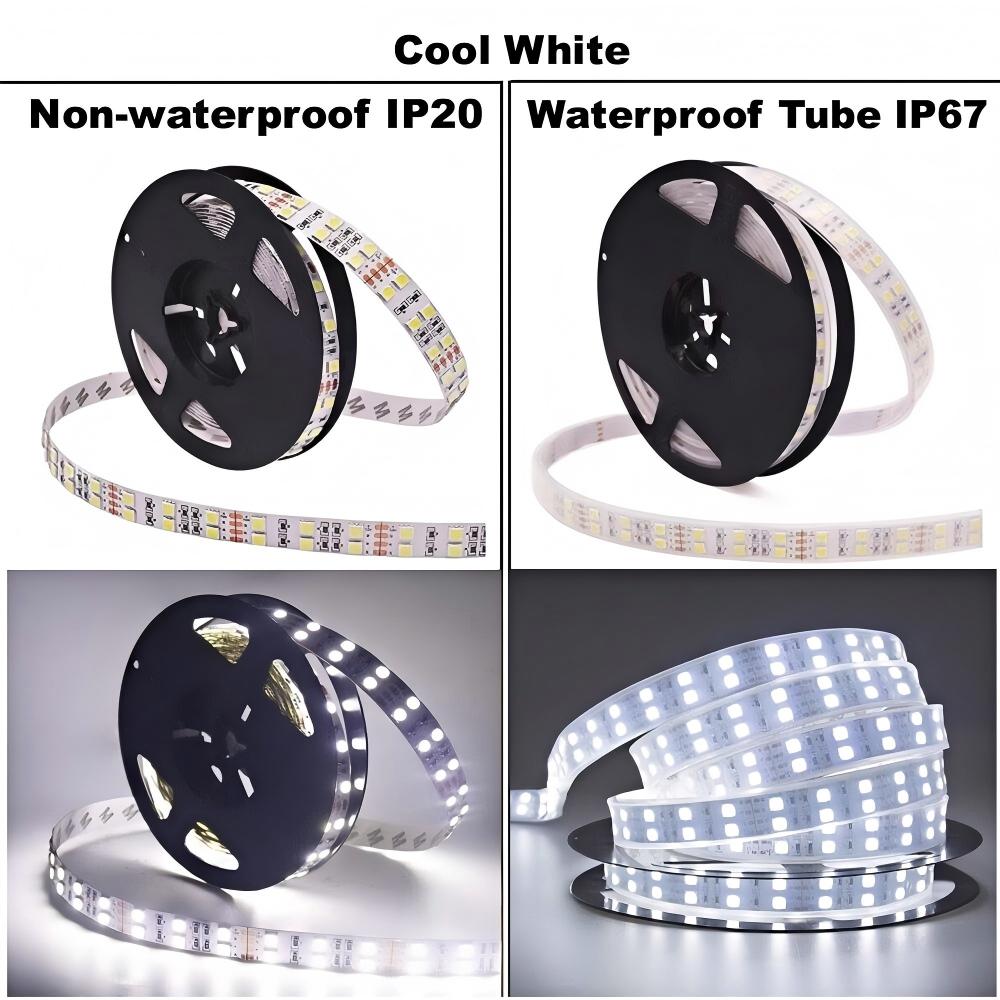

IP65: for indoor moisture protection that the water on rain can’t spary on the product.

IP67: for rain protection that could not immersed the product under the water for long time running.

IP68 silicon: for ground installation or occasion that will immerse into the water but could not use in swimming pool or sea side for the silicone is not chlorine resistance.

IP68 PU: for swimming pool installation or sea side installation that is resistance to chlorine and severe environment.

installation guide

1. Clean the dirt or strain on the aluminum profile or installation surface be attach the LED strips.

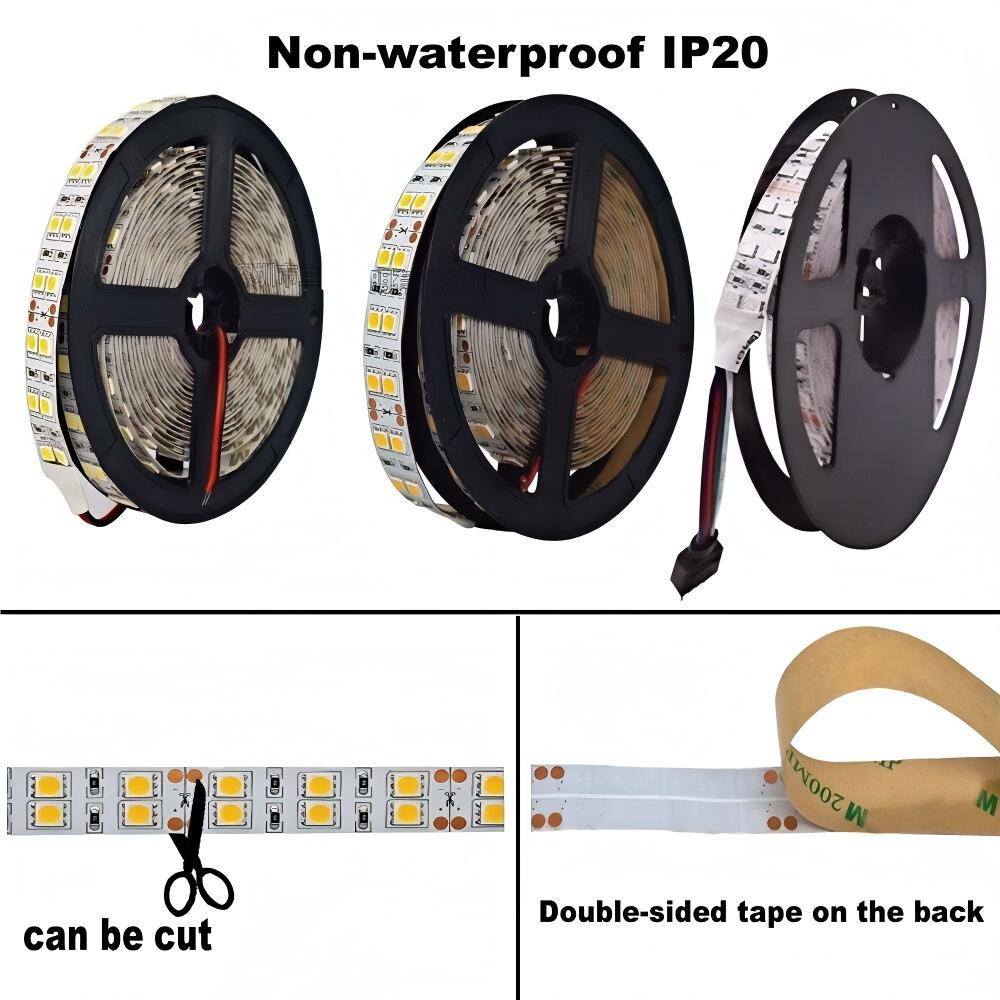

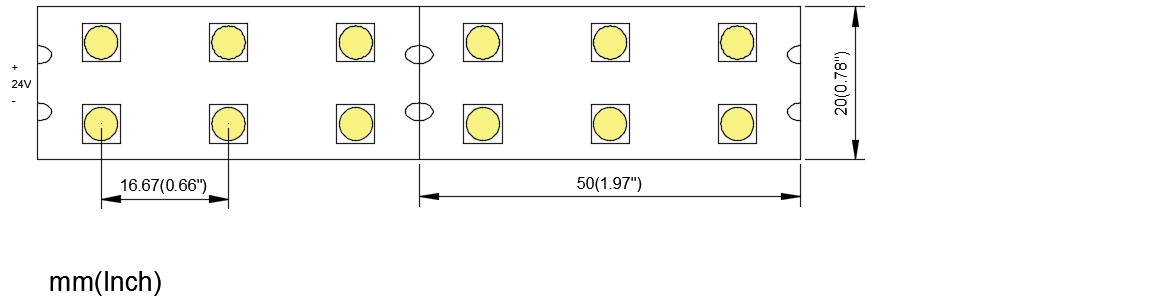

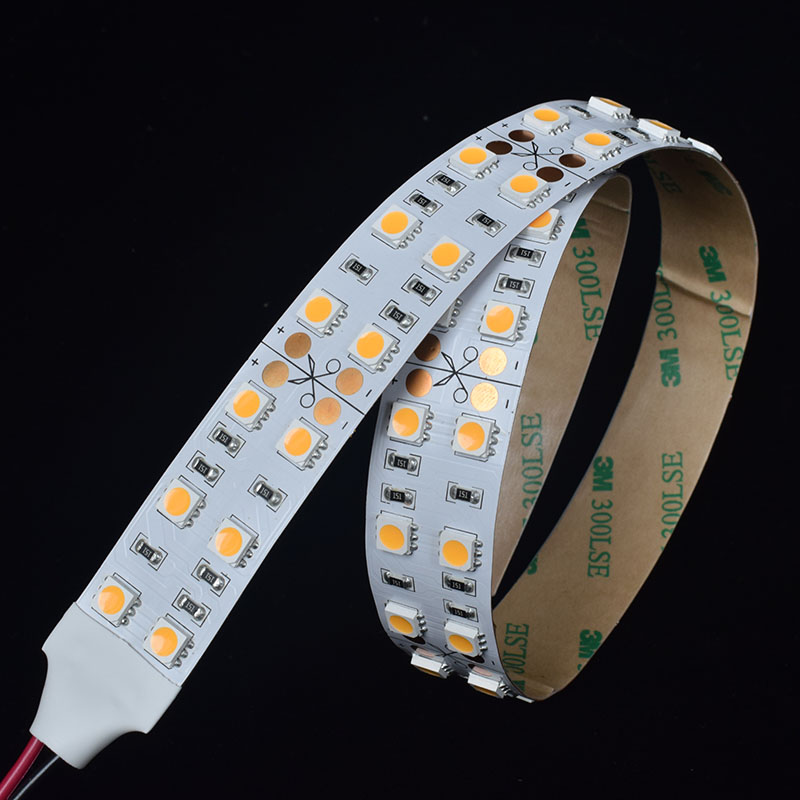

2.Cut the LED strip light by the cutting mark between solder pads to the length.

3. Solder the cable on LED strip, please avoid the solder gun too close the LED strip light too long of time. The maximum temperature is 350 centigrade, duration 2 seconds. Fast connector could also used for soldering free connection.

4.Peel the brown anti-adhesive layer of 3M tape off, please avoid peeling the whole 3M tape off. we could peel the anti-adhesive layer while attach the LED strip on the aluminum profile.

5.Attach the LED strip light on the installation surface, please avoid folding, twisting, over bending the LED strips. The minimum bending diameter of LED strip is 50mm.

6.Please avoid touch the LEDs during installation and wearing electrostatic ring is recommend during the installation.

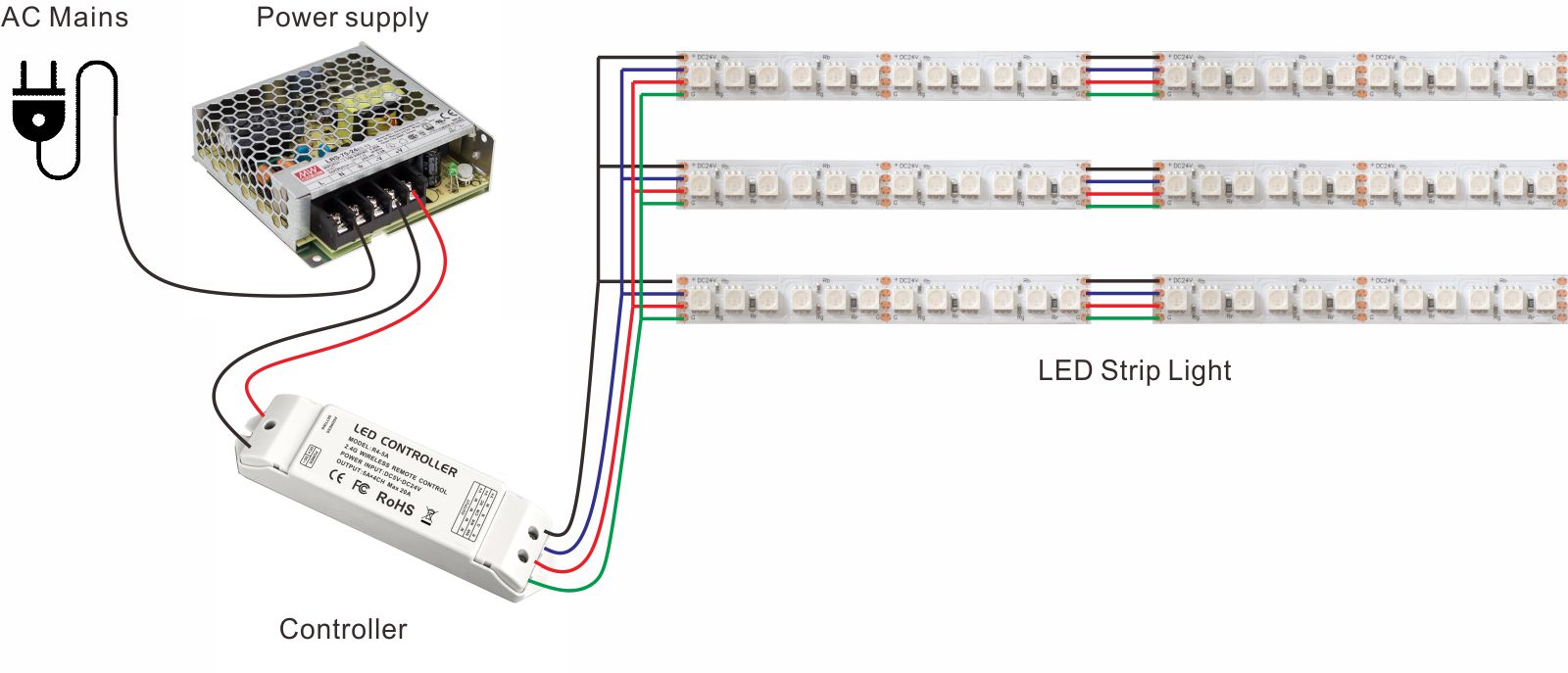

Connect the LED strip light to power supply.

Connection method

Application

Ideal for decoration of building outlines, landscape illumination, amusement themes,
Holiday light sculpture, decorative figure, active signs, displays, shop windows
And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing,
ceiling, or driveway

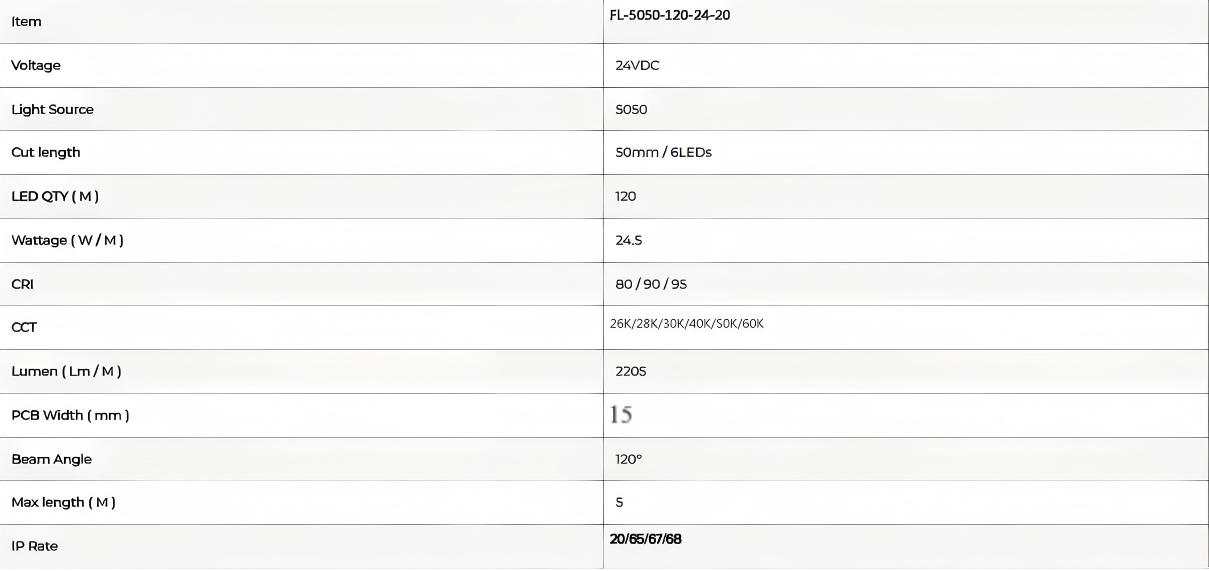

LED 5050 Strip Light Types and Specifications

Fontislight manufacturers high-quality 5050 LED light strips. In keeping with the versatility of the strip, we have designed different versions of 5050 strip light that cater to different needs. Our meticulous LED light strip production process ensures our LED strips are durable and effective. Here are the different types of 5050 LED light strips we manufacture.
