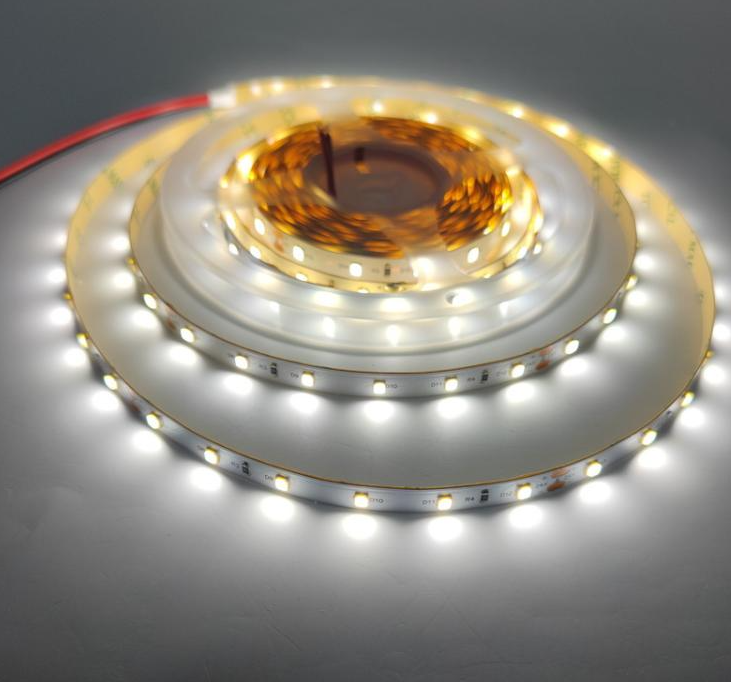

SMD2835-60leds-8mm- DC24V/12V Flexible LED Strip Lights
SMD2835-60LED-8MM-HE LED strip light is the brightest of our strip products, featuring high lumen output and high energy efficiency. This ultra-thin LED strip has 60 high-quality SMD2835 LEDs per meter, a width of 8mm, a power consumption of 45W for 5m/roll, and a light output efficiency of up to 200 lm/W per meter. It is available in Warm White 3000K, Natural White 4000K, and White 6500K colors. This LED tape light uses a 24V DC power supply and is dimmable and adaptable to a variety of dimmers, switches, and other accessories, providing high-quality lighting effects ideal for wholesale and retail, various scene lighting, and commercial lighting.

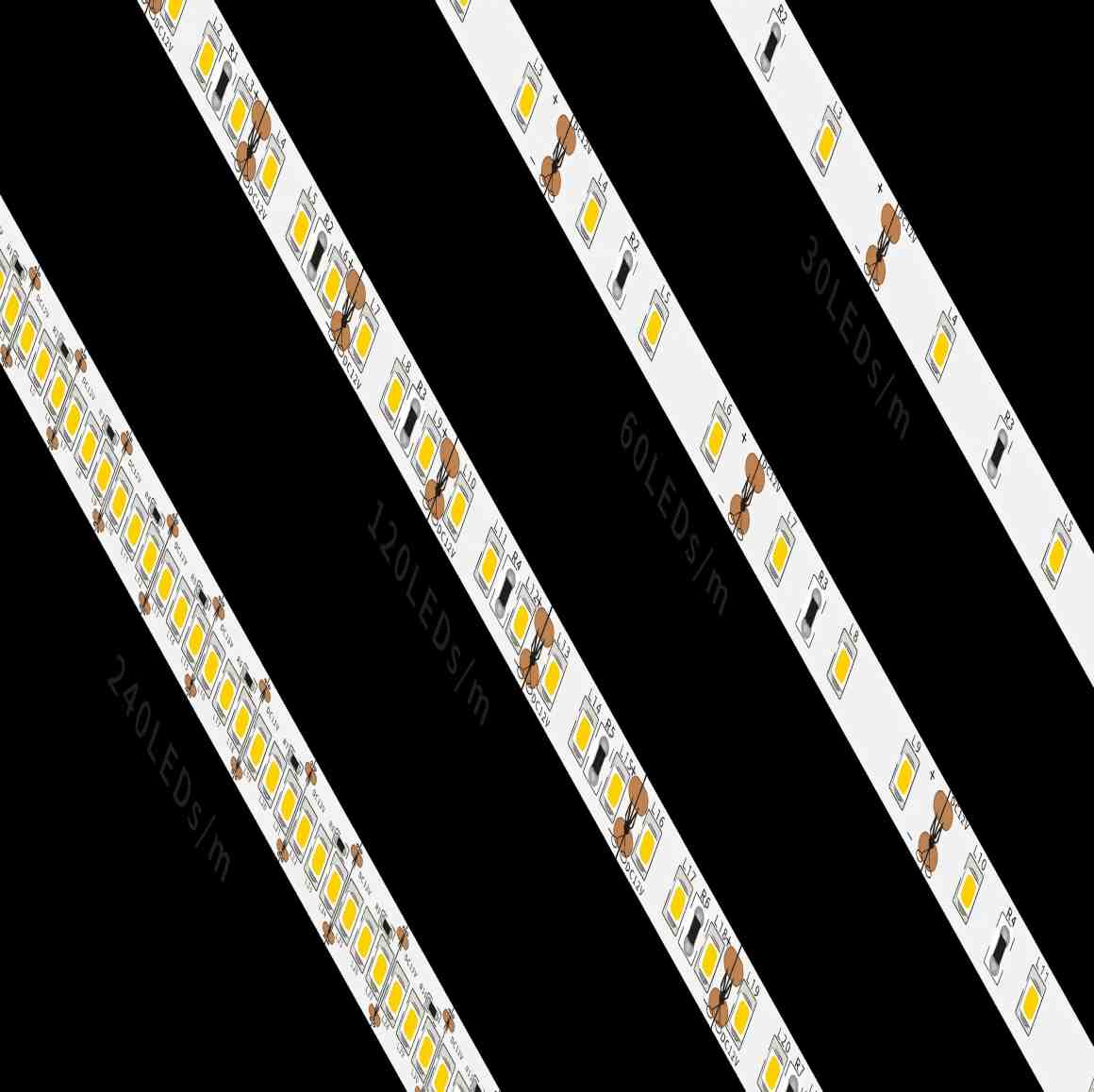

60 SMD2835 LEDs per meter
8mm PCB width
CRI≥80 for accurate color rendering
Up to 200lm/W high efficiency
Fully Dimmable
Strong double sided 3M adhesive tape
3000K, 4000K and 6500K color temperatures optional
Single one color BIN, 3 steps SDCM available
Can be OEM/ODM and customizable
Specifications
| Model No. | Voltage | Power | Efficiency | Ra | CCT | LED Type | LED QTY | PCB Width | Cutting Unit |
|---|---|---|---|---|---|---|---|---|---|
| FL-2835W300N-12V | DC12V | 5W/m | 110-115lm/W @Ra70 105-110lm/W @Ra80 95-100lm/W @Ra90 | ＞70,＞80,＞90 | 3000K – 6000K | SMD2835 | 120LEDs/m | 8mm | 50mm/3LEDs |
| FL-2835W300N-24V | DC24V | 5W/m | 110-115lm/W @Ra70 105-110lm/W @Ra80 95-100lm/W @Ra90 | ＞70,＞80,＞90 | 3000K – 6000K | SMD2835 | 120LEDs/m | 8mm | 100mm/6LEDs |

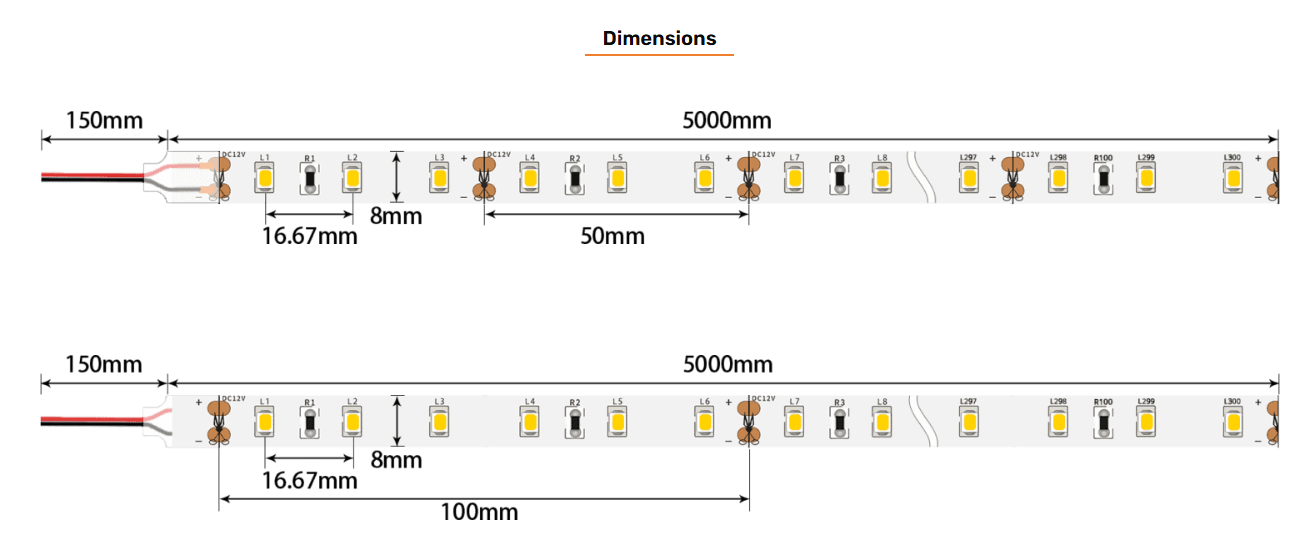

Dimensions
Dimensions
Features

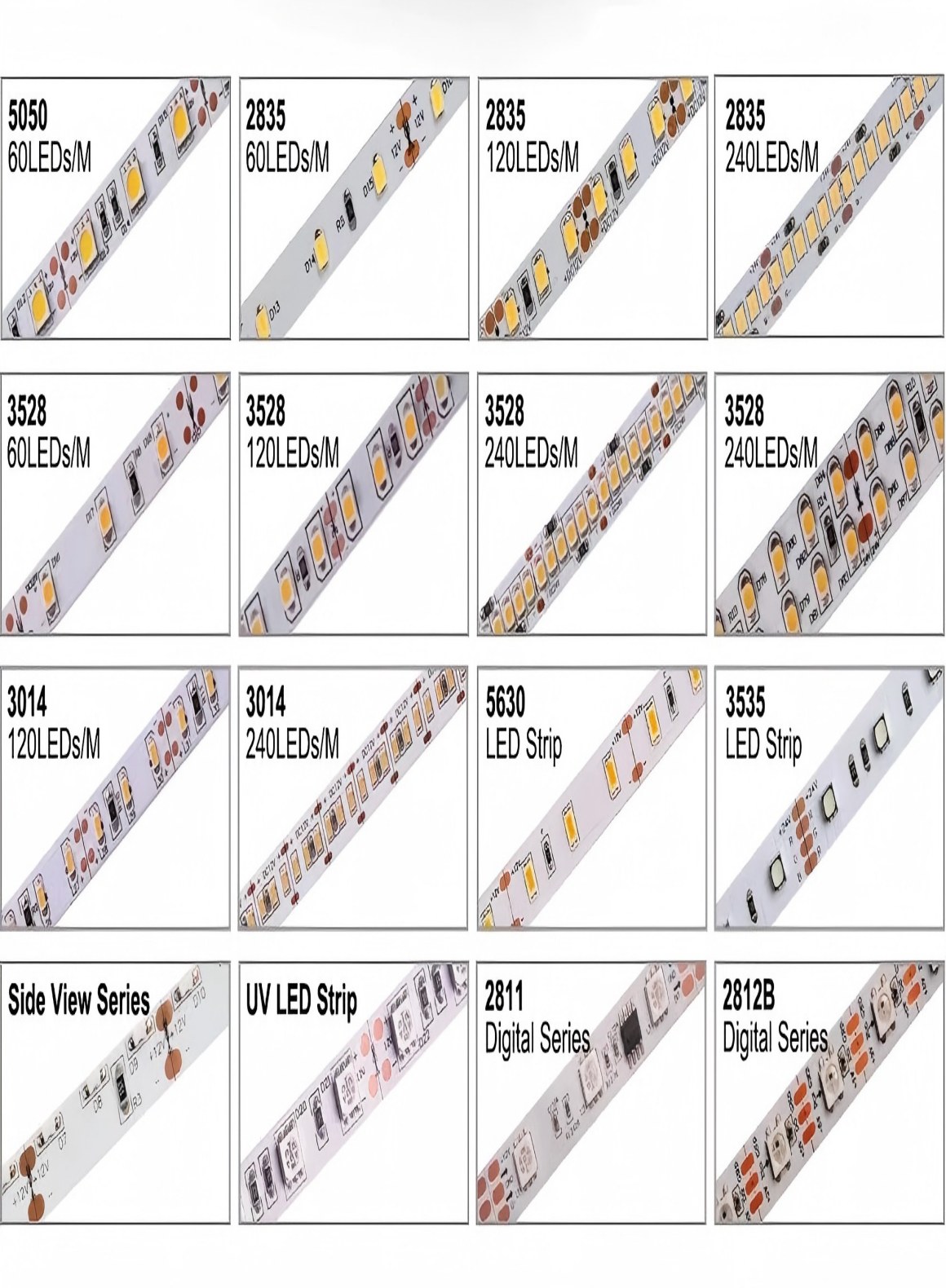

LED Type
Color Temperature

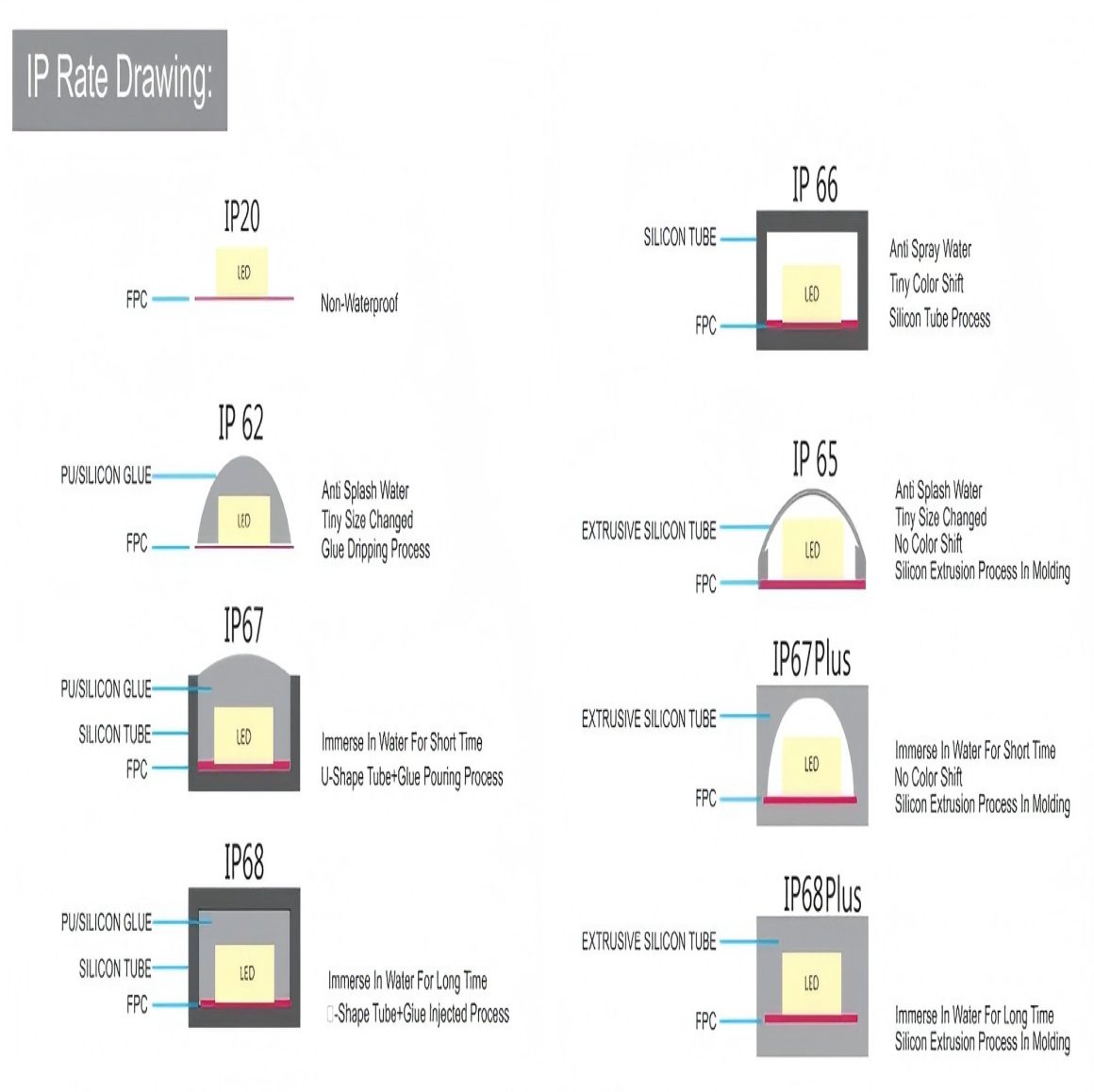

Water-proof Type

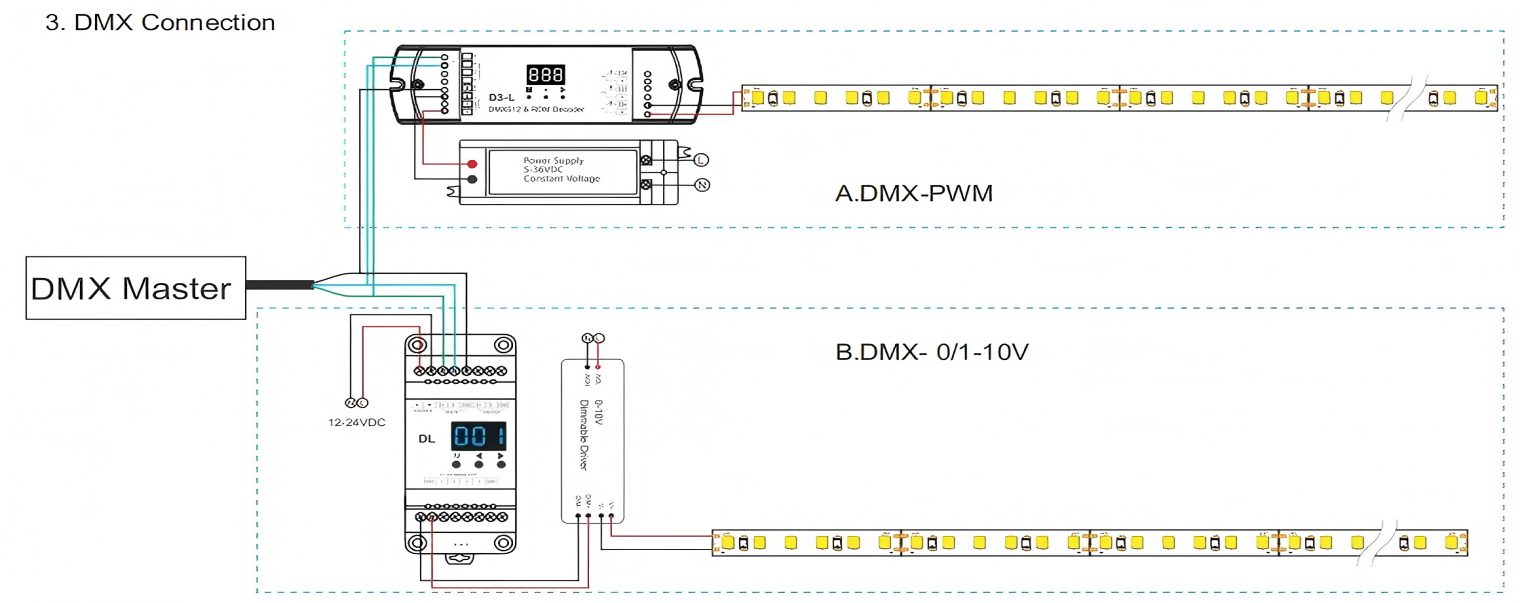

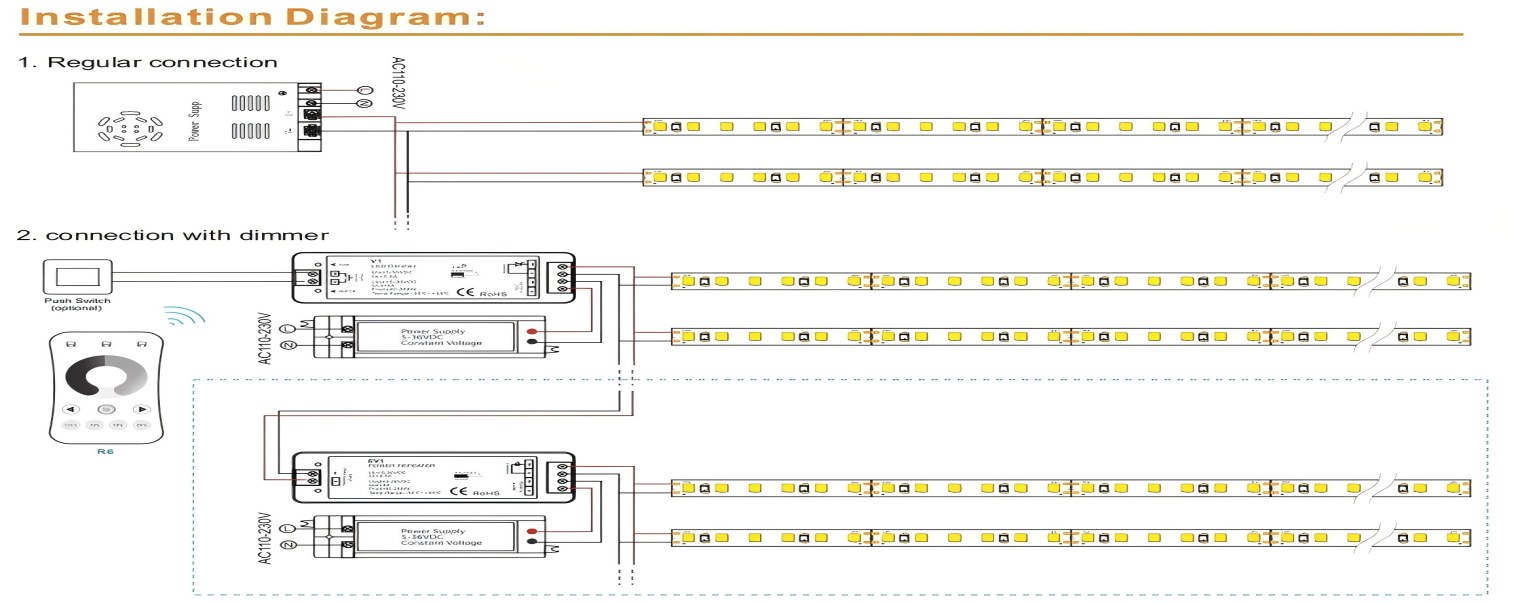

installation diagram：
Packaging method
Introduction
LED strip is one of the most popular versatile forms of lighting, by different of chip density, IP rating, color and CRI, it’s widely uesed for decorative lighting, back lighting, linear lighting, signage lighting, etc. With flexiable and cuttable ability, people could do DIY lighting as well.

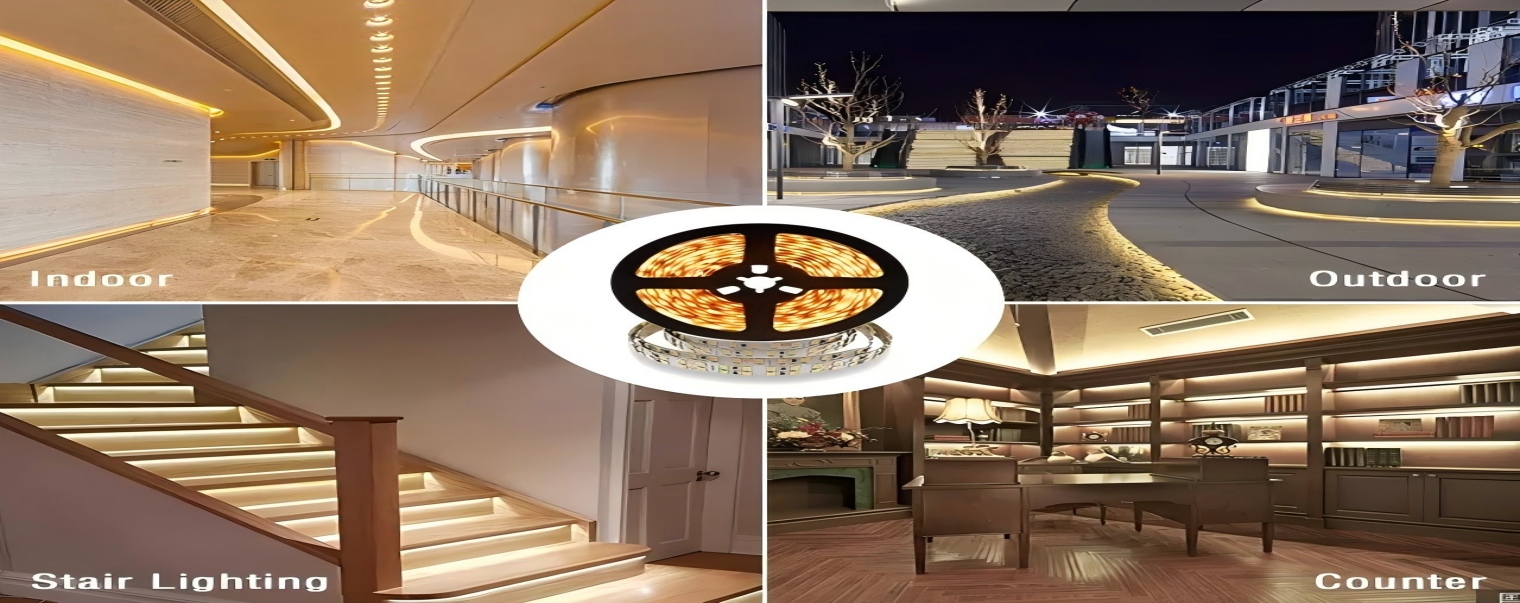

Application
