FEATURES:

1. Super bright 2835 SMD LED, totally 48000LM, high intensity and reliability

2. Continuous length, packed with 5 meter

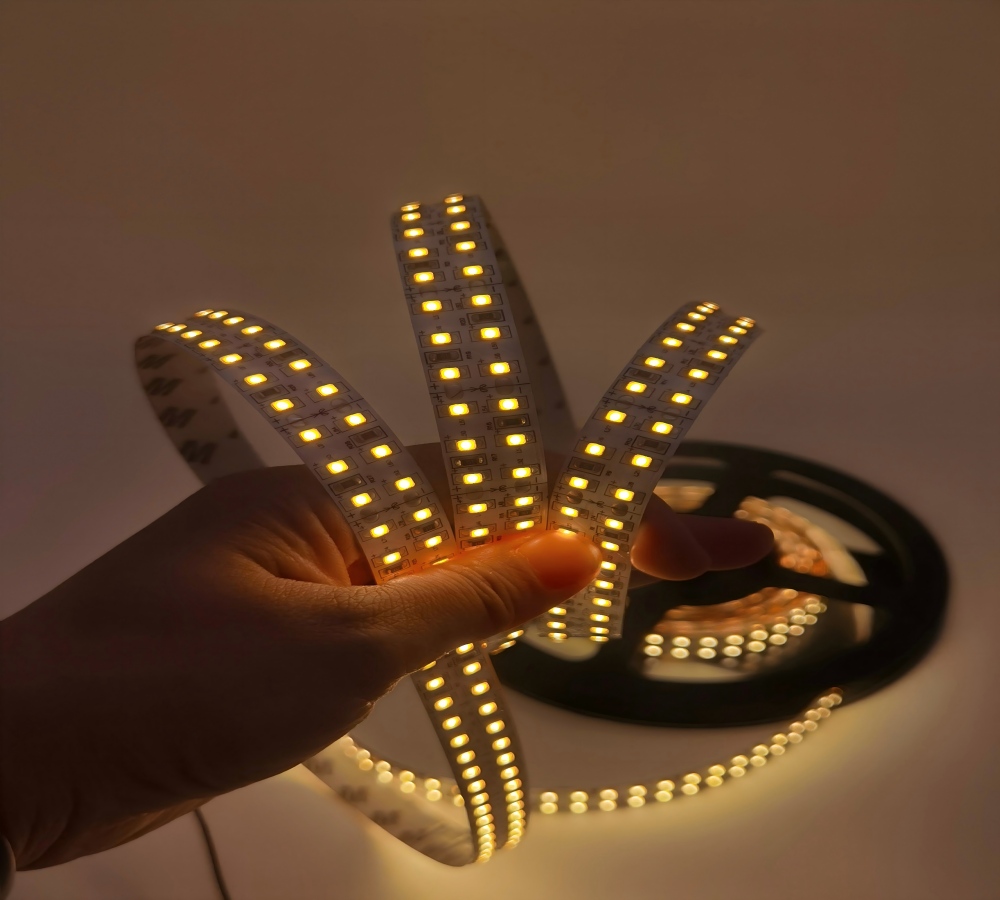

3. Flexible ribbon strip for curving around bends

4. Completely smooth and even light spread, solving the uneven luminous problem

5. Ultra-bright but running at low voltage and low temperature

6. Low power consumption

7. Every 6 LEDs cutable without damaging the rest strip

LED STRIP APPLICATION

1. Can be used for home lighting,commecial lighting,etc...
2. Architectural lights for canopy, corridor, window, archway.
3. Backlight or edge lighting for signage.
4. DIY lights for home using.
5. Path and contour marking.
6. Decorative lights for holiday, event, show, exhibition.
7. Special light effect for art gallery and glass-made items.

IP65: for indoor moisture protection that the water on rain can’t spary on the product.

IP67: for rain protection that could not immersed the product under the water for long time running.

IP68 silicon: for ground installation or occasion that will immerse into the water but could not use in swimming pool or sea side for the silicone is not chlorine resistance.

IP68 PU: for swimming pool installation or sea side installation that is resistance to chlorine and severe environment.

installation guide

1. Clean the dirt or strain on the aluminum profile or installation surface be attach the LED strips.

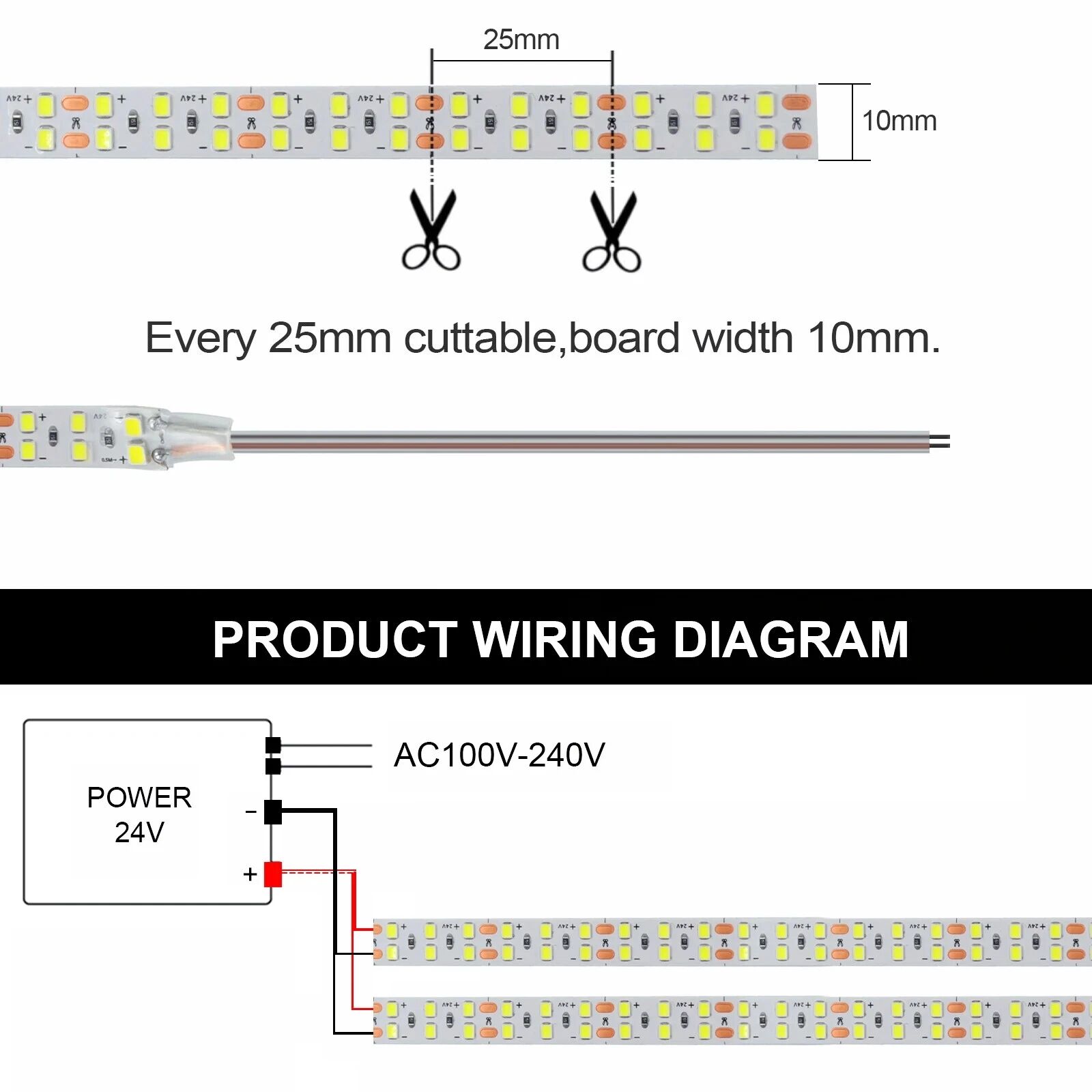

2.Cut the LED strip light by the cutting mark between solder pads to the length.

3. Solder the cable on LED strip, please avoid the solder gun too close the LED strip light too long of time. The maximum temperature is 350 centigrade, duration 2 seconds. Fast connector could also used for soldering free connection.

4.Peel the brown anti-adhesive layer of 3M tape off, please avoid peeling the whole 3M tape off. we could peel the anti-adhesive layer while attach the LED strip on the aluminum profile.

5.Attach the LED strip light on the installation surface, please avoid folding, twisting, over bending the LED strips. The minimum bending diameter of LED strip is 50mm.

6.Please avoid touch the LEDs during installation and wearing electrostatic ring is recommend during the installation.

Connect the LED strip light to power supply.
