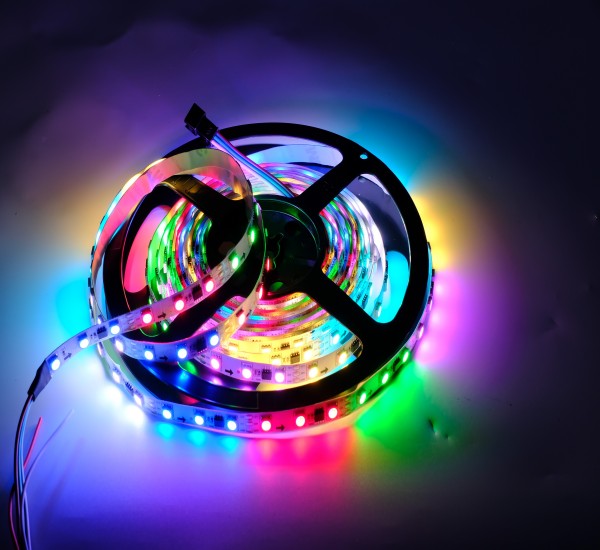

WS2811 led strip
IC Model: WS2811 (Datasheet)
LED Quantity: 30/60 RGB LEDs/meter
Power consumption:7.2W/ 14.4W per meter
Length: 16.4Ft(5meters)/reel
Working Voltage: DC12 Volt
Finish: White or Black
Rating: IP20 Nonwaterproof with 3M tape on the back), IP67 water resistant silicone tube
View angle: 120°
Functions: every 3-LEDs segment Cuttable
Lifespan: 50,000+hours
Guarantee: 2 years
Introduction
What is WS2811?
The WS2811 is a three-output channel LED driver circuit. The WS2811 LED driver chip is widely used to control LED strips. WS2811 LED strip is usually 30 to 60 LEDs per meter. The voltage is 5V, 12V and 24V. Usually, 12V is more common.
5V, 12V and 24V WS2811 LED Strip

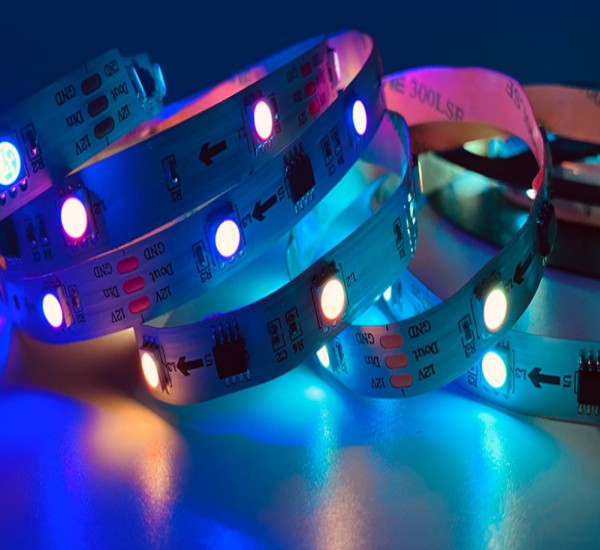

WS2811 LED strip is an external IC. The WS2811 IC is mounted externally on the PCB. They are voltage compatible and have various cutting devices.
WS2811 5V LED Strip: Each LED can be cut and one WS2811 IC controls each LED. WS2811 12V LED Strip: Three RGB lights can be cut and one WS2811 IC controls the brightness and color of these three lights at the same time. WS2811 24V LED Strip: Six RGB LED lights can be cut and one WS2811 IC controls the brightness and color of these six lights at the same time
Key Features:
1.Individually Addressable Pixels: Each LED can display different colors and effects.
2.Wide Pixel Density Options: From 10 to 60 pixels/m for different resolution needs.
3.5050 RGB LEDs: Standard high-brightness RGB plus side-emitting option for signage and edge lighting.
4.Multiple Voltage Choices: DC5V, DC12V, and DC24V support various projects.
5.SPI Signal Protocol: Ensures smooth, stable, and reliable control.
6.Durable & Customizable: 2oz copper PCB with cuttable sections for flexible installation.

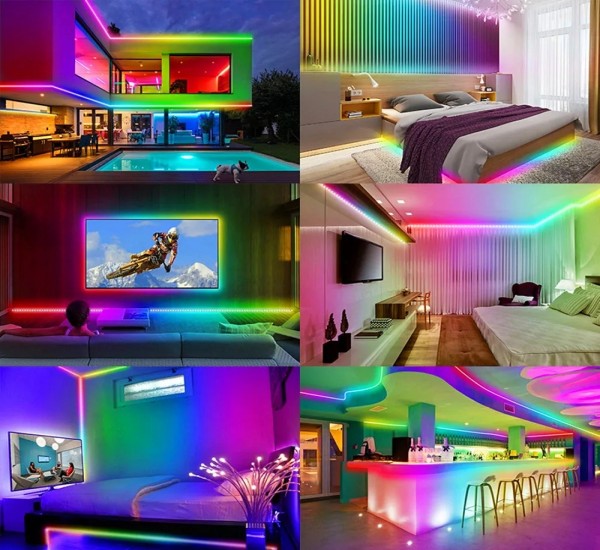

Applications of Pixel LED Strip
1.Architectural Lighting
2.Decoration Lighting
3.Building facades Lighting
4.Special Event Lighting
5.Commercial Lighting
6.Residential Lighting
