What is COB led strip light? COB led strip light is a new design led strip light. For flexible strip light, another name is FCOB led strip light. It is the chips on FPCB.So it doesn't need the SMT process. It is dotless, very good for led linear light, led aluminum profile using.What is COB led strip light? COB led strip light is a new design led strip light. For flexible strip light, another name is FCOB led strip light. It is the chips on FPCB.So it doesn't need the SMT process. It is dotless, very good for led linear light, led aluminum profile using

What is WS2812B LED Strip?

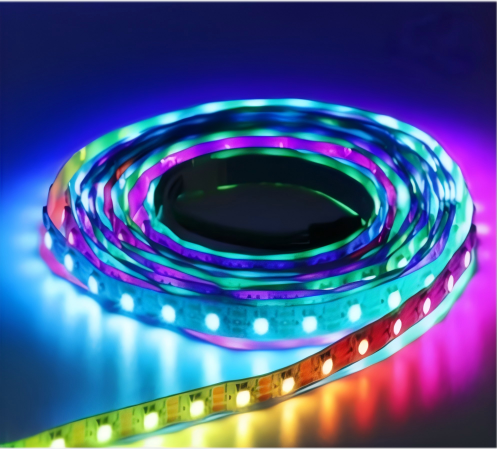

The WS2812B LED strip, also known widely as the NeoPixel LED Strip, is a famous addressable RGB LED strip with built-in IC, often used in many lighting projects due to its ease of use and flexibility. Each LED on the strip can be controlled individually, allowing for the creation of intricate patterns, animations, and effects with a wide spectrum of colors.

Features of WS2812B LED strip

.Individual Addressability: Each LED can be independently controlled, enabling the creation of complex lighting effects and color patterns through an integrated control circuit within each LED.

.RGB Color Capability: WS2812B LEDs can produce a wide range of colors by mixing red, green, and blue, facilitating the creation of virtually any color in the spectrum.

.Integrated Control Circuit: Built-in IC (Integrated Circuit) in each LED simplifies wiring and control, requiring only one data input for operation.

.Serial Communication: Utilizes a single-wire serial communication protocol, making it easier to connect and control with microcontrollers.

.Power Requirements: Typically operates at 5V, drawing significant current, especially at full brightness, necessitating proper power supply and wiring considerations for larger installations.

.Diverse LED Density: Offers 30 to 144 LEDs per meter, accommodating various brightness and resolution needs for different applications.

.Multiple Waterproof Grades: Available in various waterproof grades, including IP20, IP52, IP65, and IP67, to meet indoor and outdoor requirements, enhancing its utility across different environments.

.Flexible and Easy to Use: This strip can be cut to the length you need at certain spots and stuck onto different surfaces with its 3M tape, making it simple to put up.

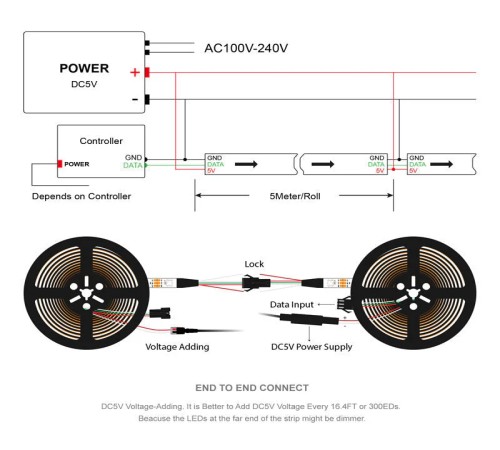

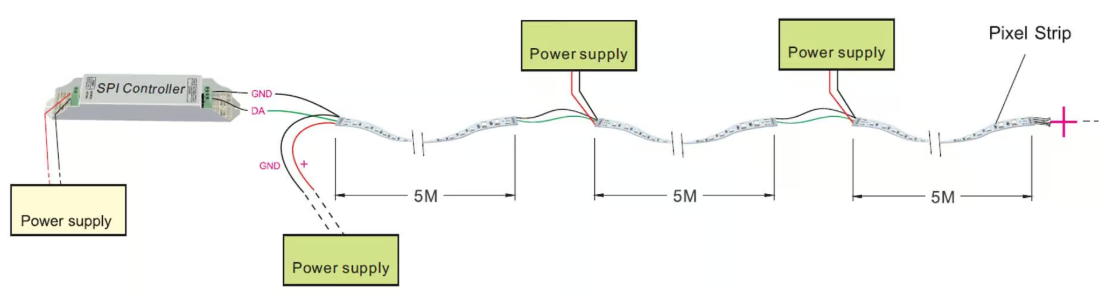

Wiring Diagrams of WS2812B LED Strip

Setting WS2812B LED Strip Controller

Setting up the WS2812B LED Strip Controller correctly is crucial for achieving the desired lighting effects. This process involves connecting your LED strip properly, selecting the specific IC type, adjusting the RGB sequence, defining the pixel count, and choosing your preferred lighting patterns. Each step ensures your LED strip operates efficiently, allowing for full customization of lighting designs to suit any mood or occasion. Follow these steps for a seamless controller setup and enjoy the vibrant, dynamic displays that your WS2812B LED strip can produce.

Step 1: Connect the WS2812B LED strip to the controller and LED power supply as shown in the wiring diagram. Remember, the signal direction on the strip matters, so ensure the signal start-end is connected to the controller.

Step 2: On the controller’s remote, select the IC type as WS2812B.

Step 3: On the controller’s remote, set the RGB sequence.

Step 4: On the controller’s remote, specify the number of pixels.

Step 5: Choose the lighting change mode or pattern.

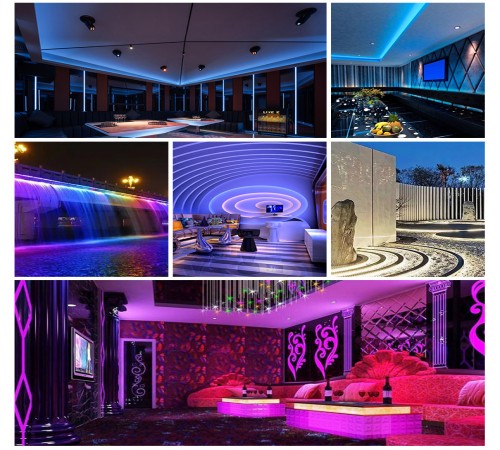

Applications of WS2812B LED Strip

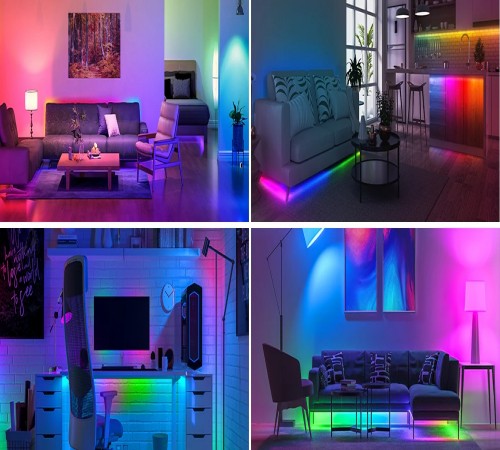

Home Decoration: Enhancing ambiance in rooms, under cabinets, along staircases, and around windows with customizable color schemes.

Commercial Signage: Creating vibrant, eye-catching signs for businesses, including storefronts, displays, and advertisements.

Event and Party Lighting: Adding dynamic, colorful lighting to parties, weddings, concerts, and other events for a festive atmosphere.

Architectural Lighting: Accentuating interior and exterior architectural features with tailored lighting effects.

Wearable Technology: Incorporating into costumes, clothing, and accessories for unique, illuminated fashion statements.

Automotive Customization: Enhancing vehicle aesthetics with underbody lighting, interior accents, and dashboard illumination.

Interactive Art: Crafting interactive installations and artworks that respond to movement or environmental changes with light.

Gaming and Computer Setups: Upgrading gaming rigs and computer stations with personalized, mood-enhancing backlighting.

Holiday Decorations: Creating custom holiday lighting displays for Christmas, Halloween, and other celebrations.

Educational Projects: Teaching electronics, programming, and design principles through hands-on LED projects.
