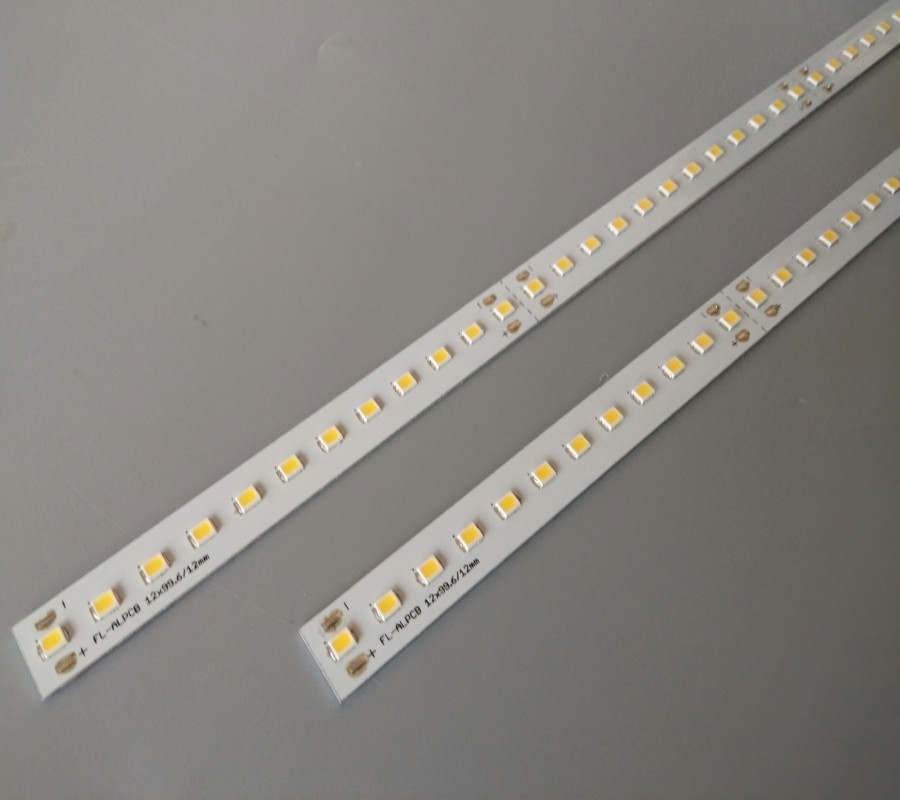

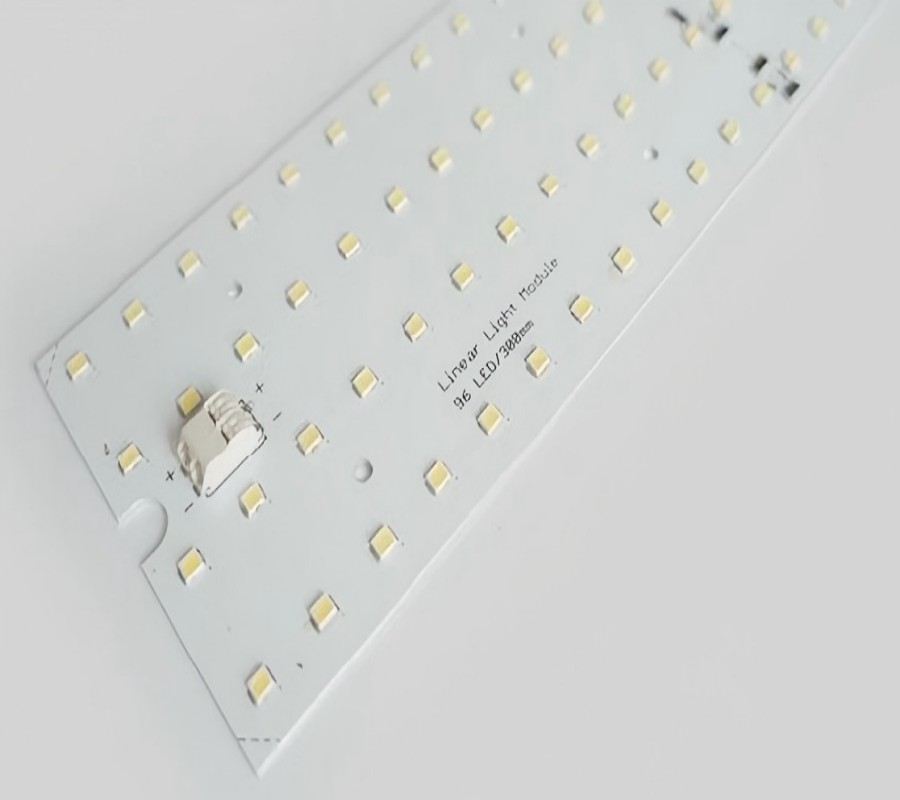

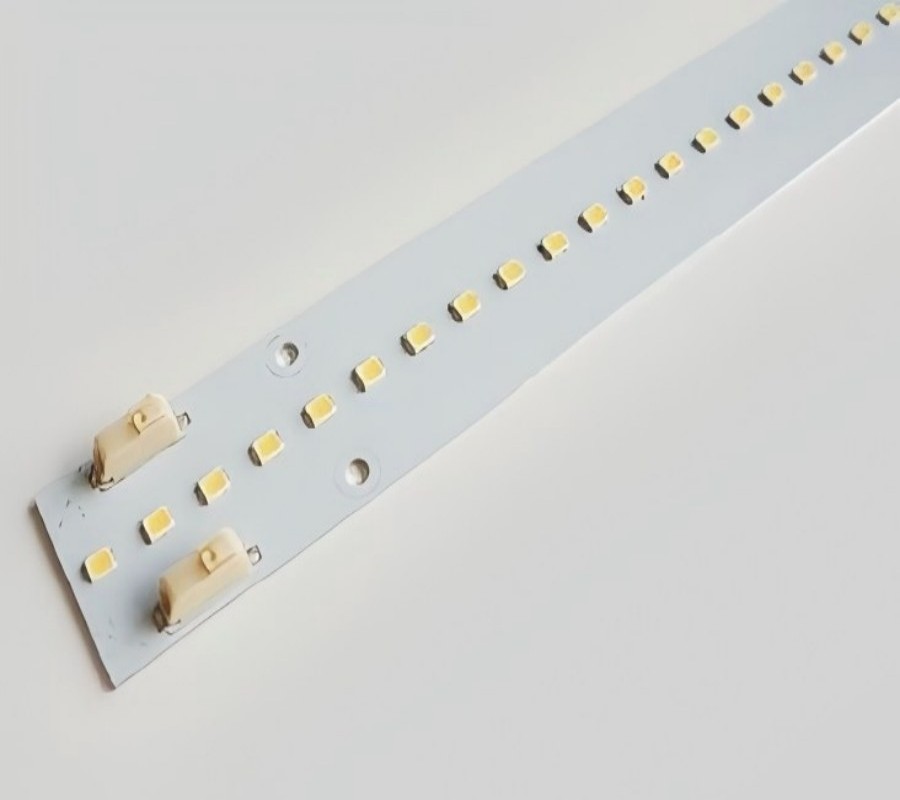

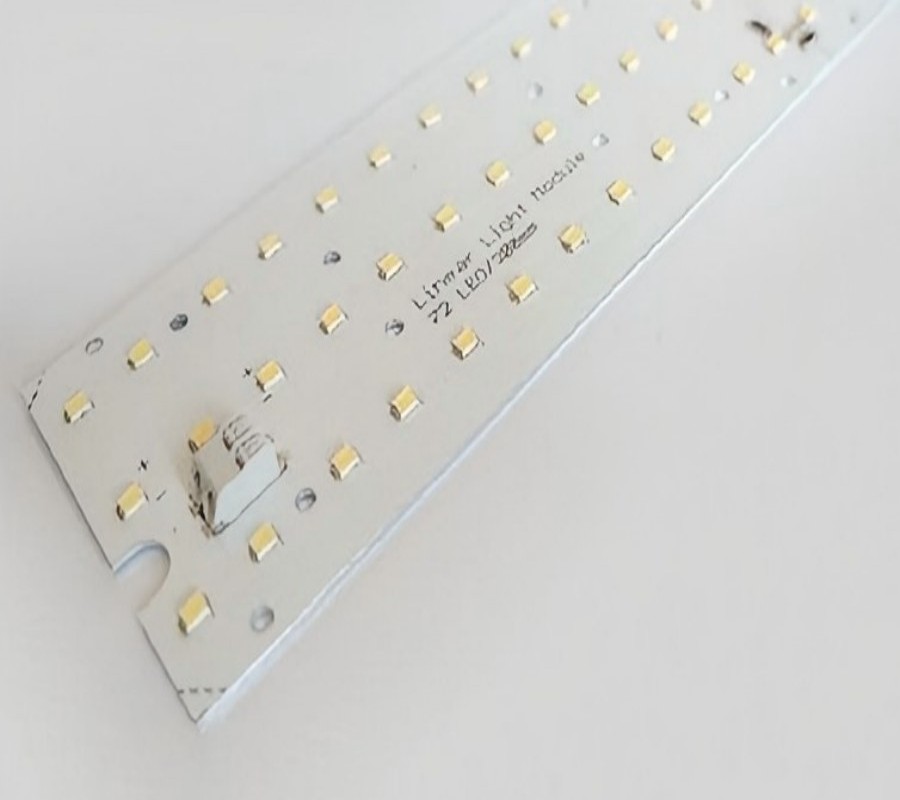

Linear LED Module Series

The LED linear module is a versatile lighting solution that provides powerful and efficient lighting for a variety of indoor and outdoor applications. The modules use high-quality LEDs to provide bright, even illumination that is both energy efficient and environmentally friendly. The LED linear module is brighter than LED strips, and the LED panels are available in different color temperatures, wattages, and lumens. It is also compatible with various dimming systems. Linear LED modules are available in a variety of sizes to choose from or customize, from 5.5 inches to 44 inches. These LED modules support both series and parallel connections, providing maximum flexibility in fixture design.

LED linear modules are designed to be easy to install and maintain, making them a great choice for any lighting project. These rigid LED strips can be used for home lighting, residential lighting, commercial lighting, and more, such as under cabinet lighting, workbench lighting, display case lighting, billboard lighting, hotel, bar, supermarket display case, and showcase lighting.

Working Voltage: 33-42V DC

Power: 20-28W

Current: 500-700mA

Lumen: 2800-3500lm

CRI: 80+

Dimension: 1195*12mm or 1195*10mm

Cuttable every 10cm

Working Voltage: 33-42V

DC Power: 14-15W

Current: 360mA

Lumen: 1980lm

CRI: 80+

Dimension: 592*26mm

Working Voltage: 33-42V

DC Power: 20-28W

Current: 500-700mA

Lumen: 2800-3500lm

CRI: 80+

Dimension: 600*62mm

Working Voltage: 33-42V

DC Power: 30-38W

Current: 800-960mA

Lumen: 4000-4600lm

CRI: 80+

Dimension: 600*74mm
