Full-spectrum plant lamp panel

Horticulture & Grow Lighting

We provide custom LED PCB designs for horticulture and plant growth lighting systems, where spectrum accuracy and thermal control are critical. Our solutions support multi-channel layouts, customized LED wavelengths, and high-density LED configurations.

Through precise PCB layout and thermal optimization, we help growers and lighting manufacturers achieve consistent light output, improved energy efficiency, and reliable long-term operation in controlled agricultural environments.

Inquire Now

Introduction

What Is a Custom LED PCB?

A custom LED PCB is a printed circuit board specifically designed for LED lighting applications based on exact electrical, thermal, mechanical, and optical requirements. Unlike standard off-the-shelf boards, custom LED PCBs are optimized for:

.LED power and current requirements

.Heat dissipation and thermal resistance control

.Mechanical size, shape, and mounting constraints

.Application-specific reliability standards

In professional lighting projects, standard PCBs often fail to meet thermal and durability demands. Custom LED PCB manufacturing allows full control over materials, copper thickness, dielectric layers, layout, and assembly processes—ensuring stable performance and long service life.

For projects such as street lighting, horticulture grow lights, automotive modules, and architectural lighting, customization is not optional—it is essential.

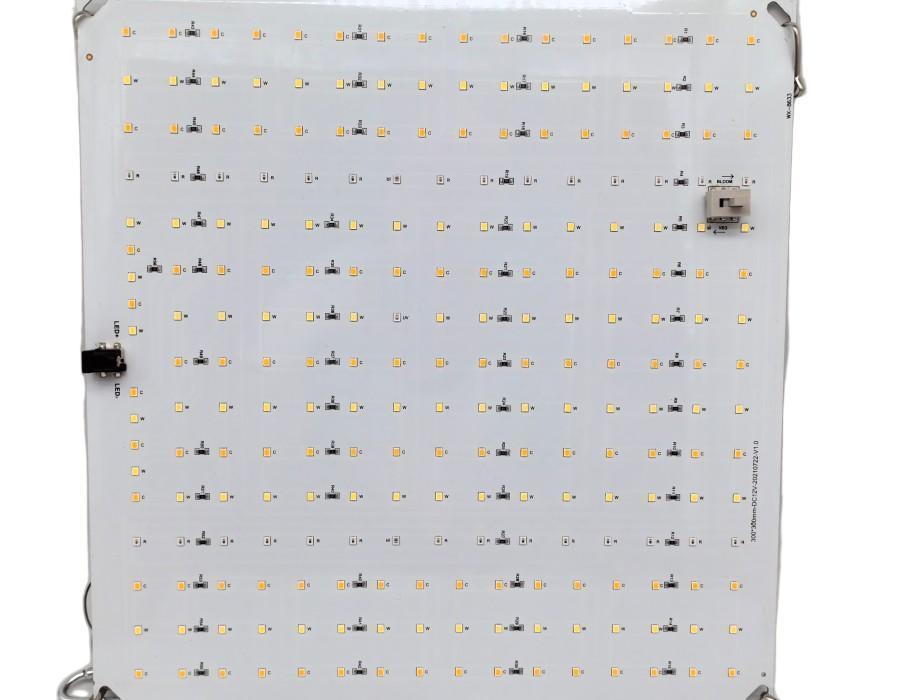

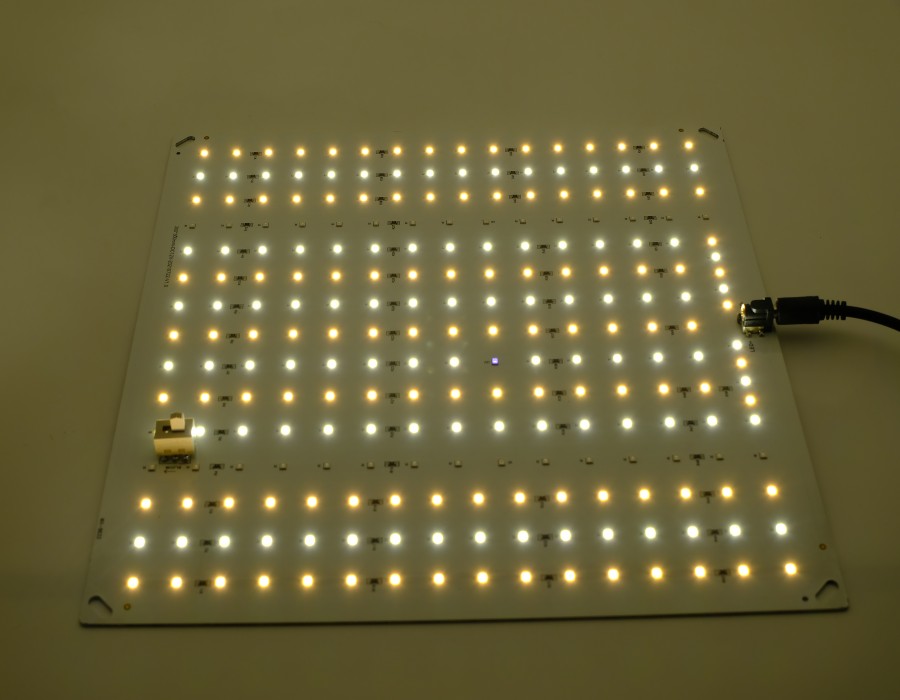

Working Voltage	100-277V AC
VEG/BLOOM Mode	BLOOM mode can facilitate plants to bloom and bear fruit, its wavelength spectrum covers 430-740nm, VEG mode promotes plant germination, its wavelength spectrum covers 430-660nm.
Power	VEG Mode: 20W , BLOOM Mode: 25W	VEG Mode: 40W , BLOOM Mode: 48W	VEG Mode: 52W , BLOOM Mode: 58W
LED Types	3000k 90pcs + 5000K 89pcs +620nm 28pcs + 730nm 2 pcs + 385nm 1pcs	3000k 111pcs + 5000K 92pcs + 620nm 28pcs +730nm 2pcs +385nm 1pcs	3000k 148pcs + 5000K 150pcs + 620nm 56pcs +730nm 4pcs +385nm 2pcs
Material	Aluminum LED Board + ABS housing, Beam Angle 120Deg, IP20 non-waterproof
Luminous Flux	VEG:2599LM BLOOM:2312LM	VEG:4241LM BLOOM:4199LM	VEG:5775LM BLOOM:5020LM
Weight	459g	770g	1015g
size	25025020mm	30030020mm	30045020mm

Features:

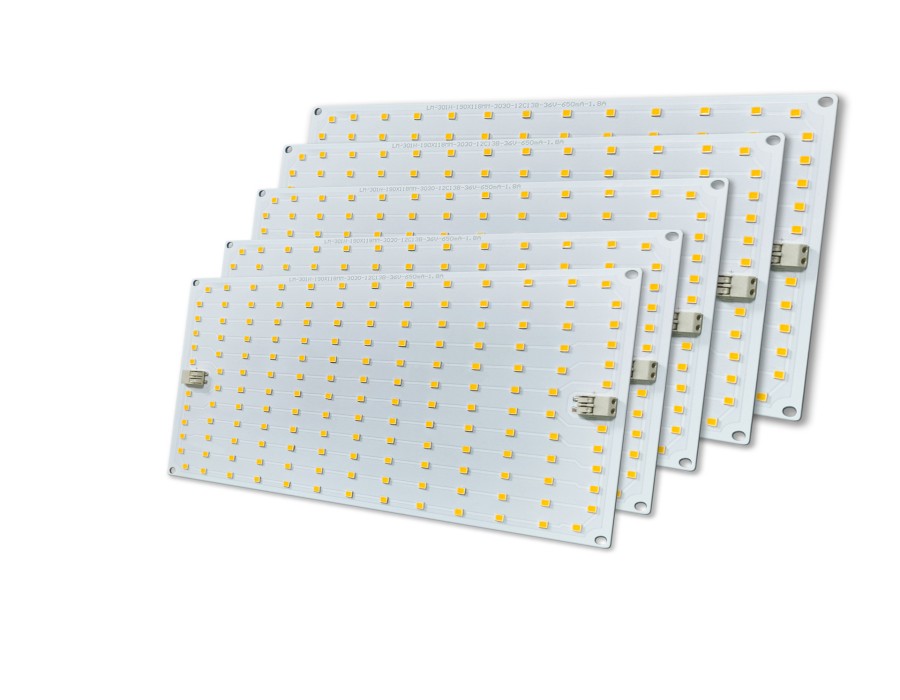

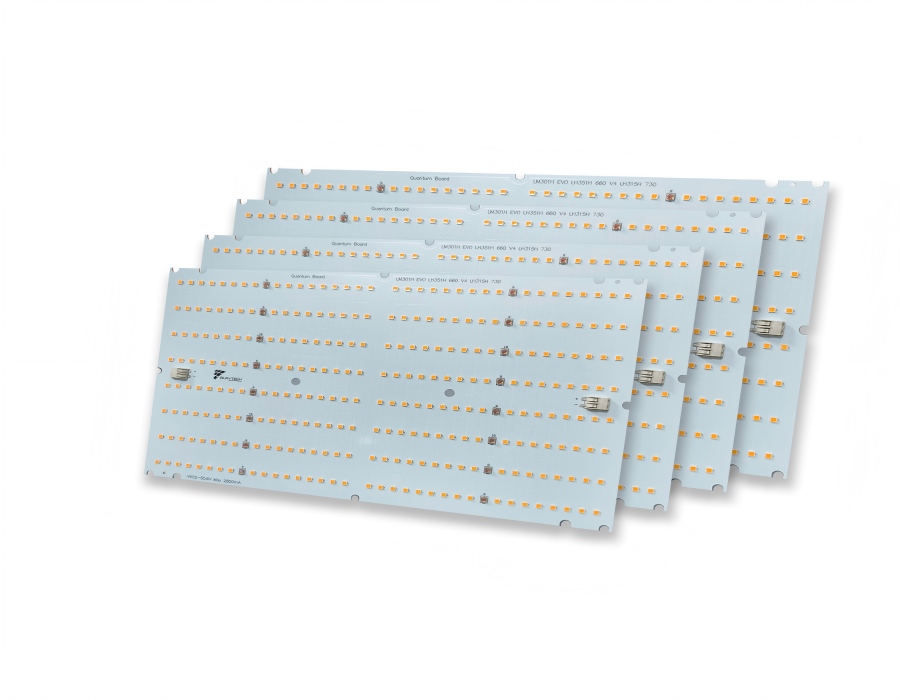

1.Professional grow lights quantum board, LM281B series, LM301B series, LM301H series, LM301H EVO series, can be customized according to customer requirements

2.PCB size, input voltage, power, spectrum can be customized according to customer requirements

Application:

.Spectrum options: full spectrum/customized spectrum (3s0nm~780nm) free ratio:

.Power options: 10W~1000W can be customized as required

.Input voltage options: DC12V/DC24V/DC36V/DC48V/other required voltages

.Current options: 500mA~10000mA can be customized as required

.PPE PpF value can be customized as require

Product Name	Honeycomb Linear Light Source Board
Light Spectrum	Full Spectrum 380-840nm
Power	50W
Power Factor	PF > 0.9
Input Voltage	AC165-265V
LED Beads	2835-72PCS
Luminous Efficacy	90LM/W
Aluminum Base Board Diameter	100mm
Light-emitting Surface Diameter	55mm
Weight	24g

Applications

- Indoor Lighting: Ideal for use in downlights, panel lights, and high-bay fixtures.

- Specialty Lighting: Perfect for plant growth lighting, retail display lighting, and other applications requiring full-spectrum light.

- Retrofit Projects: A cost-effective solution for upgrading existing lighting systems to LED technology.
