What Is LED Sheet Light?

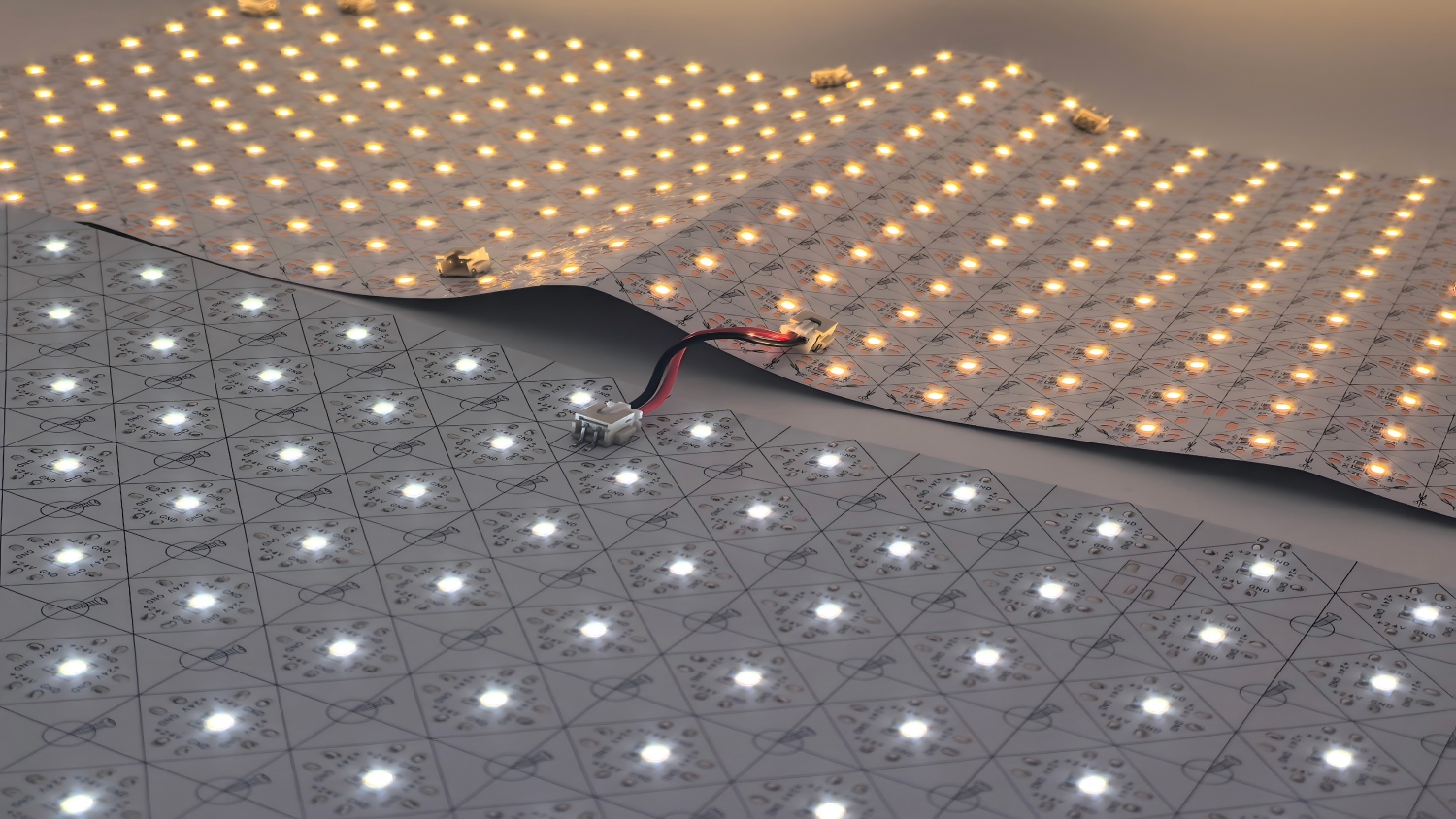

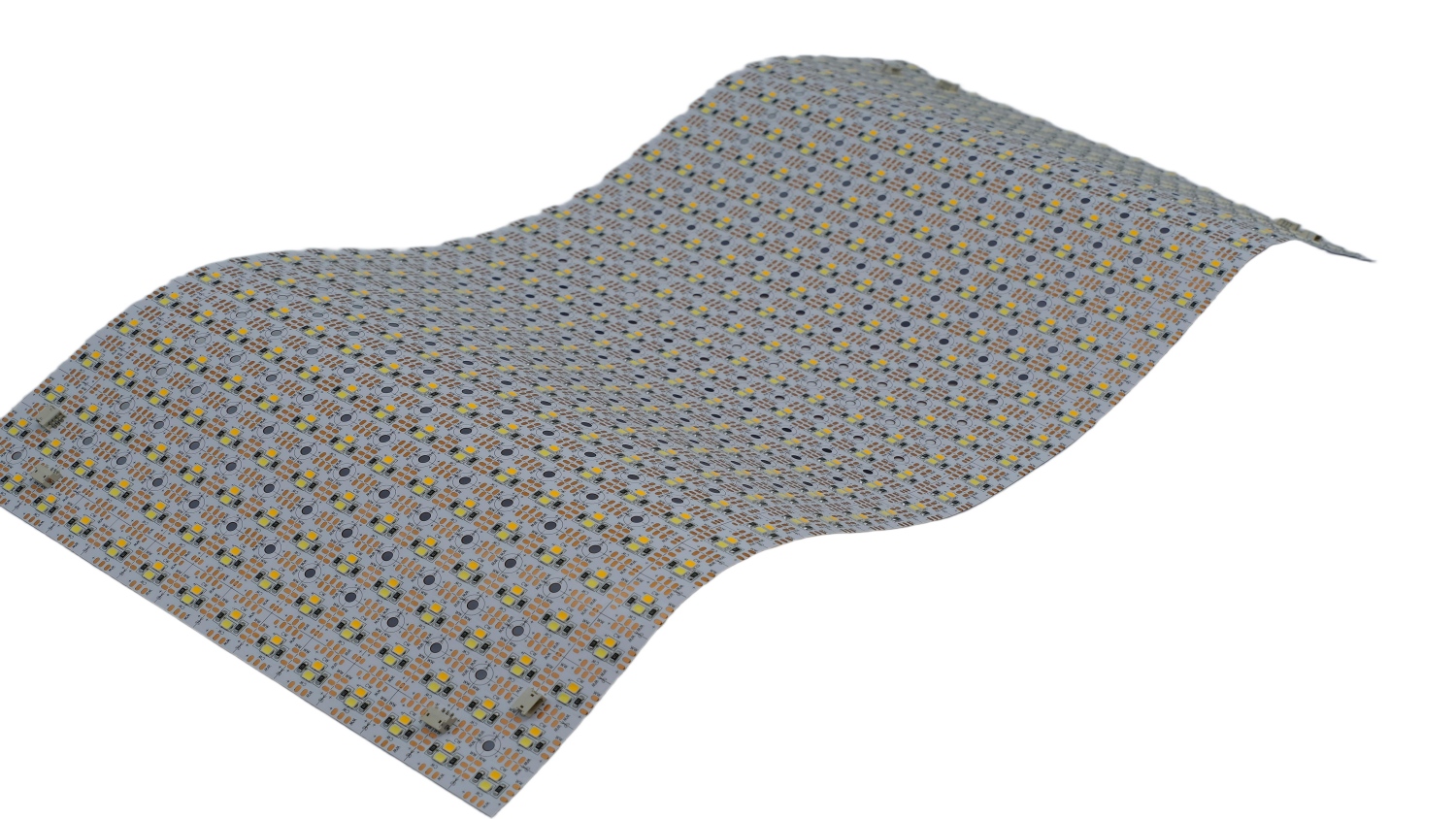

LED Sheet Light is a large-area LED lighting panel made with ultra-dense LED chips on a flexible PCB sheet. It delivers perfectly uniform backlighting without hotspots, even behind thick marble, onyx, acrylic, or retail displays. Compared with traditional LED strips, LED Sheet Light provides much better uniformity, easier installation, and flexible cutting options.

LED Sheet Light Features

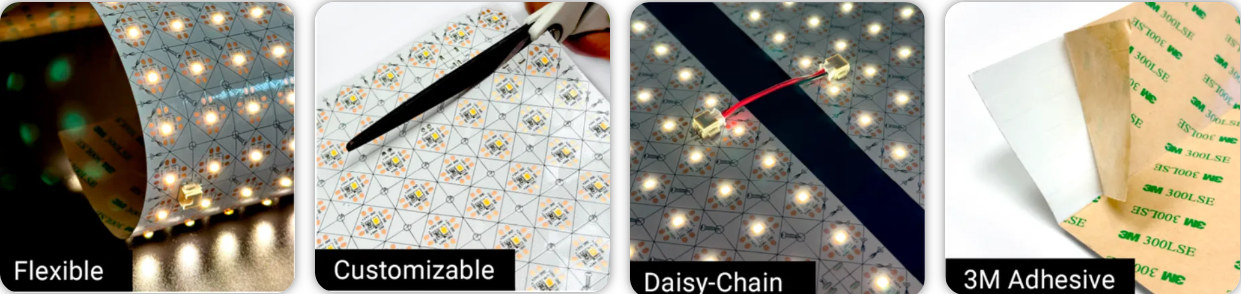

 Bendable Ultra-Thin PCB                                             easy to cut                                        Quick linkable wiring                                   Fast installation

1) Ultra-Uniform Backlight (Dotless Plane Light)

LEDs are densely arranged — result is a smooth surface of light with no hot spots.

Ideal for onyx / marble / quartz backlighting even at short spacing.

2) Flexible Cutting & Shaping

Sheets can be cut horizontally / vertically / diagonally on-site.

Easily fold around edges & corners to match real project geometry.

3) High Brightness in Thin Form

Up to ~3,400 lumens per sheet — thin + bright.

Perfect for premium hotels, bars, retail counters & feature walls.

4) Fast Install & Easy Connection

Plug-and-play connectors allow sheets to link seamlessly.

Installer simply places diffuser & adjusts spacing to final stone effect.

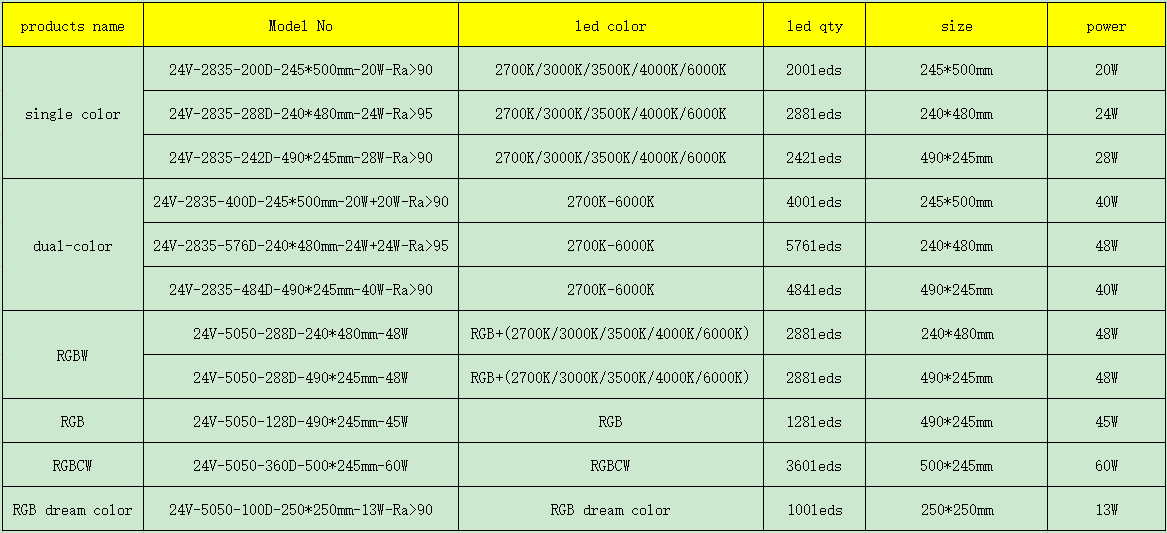

LED Sheet Light For Optional

Choose the sheet format that matches your lighting scenario.

All models are 24VDC, uniform plane-light output, cuttable in both directions, foldable over edges, and linkable via plug-and-play connectors.

1. Flexible White LED Sheet Panels – 2835 Dimmable, 24V Cuttable

Single Color LED Sheets

Size( L x W ): 240*480/245*500mm/ 490mm*245mm LED type: 2835 SMD LED quantity: 288PCS/200PCS/ 242PCS Working voltage: DC24V Power: 24W/ 20W/28W CCT: 2700K/ 3000K/ 4000K/ 6000K/ 6500K Luminous flux: 1200lm/ 2800lm CRI: >90Ra/95Ra Dimmable: YES Beam angle: 120° Waterproof level: IP20 non-waterproof Warranty: 3 years

installation is simple: just peel the double-sided adhesive backing and stick. Power connectors allow you to link multiple LED sheet panels together for larger projects without soldering. Available in 3000K warm white, 4000K natural white, and 6500K pure white, our LED sheet lights can also be paired with a dimmable LED driver for adjustable brightness. For technical details and specifications, a full LED light data sheet is available upon request. Includes: 1 × LED light sheet panel 2 × 2P connection pieces 2 × 2P power connectors 4 / 8 × Anti-collision silicone particles

2. Tunable White LED Light Sheets – Ultra-Thin, Bendable, 24V

Tunable White LED Sheets

Size( L x W ): 245mm*500 mm/ 240*480mm/490mm*245mm

LED type: 2835 SMD

LED quantity: 400PCS/576PCS/484PCS

Working voltage: DC 24V

Power: 40W/48W/40W

Color temperature adjustable range: 2700K-6500K

Luminous flux: 1600lm/3800lm

CRI: >90Ra/95Ra

Dimmable: YES

Beam angle: 120°

Waterproof level: IP20 non-waterproof

Warranty: 3 years

Installation is simple. The back includes strong double-sided adhesive, so you can mount the panels quickly on most surfaces. Power connectors make it easy to link multiple LED sheet panels together for larger layouts without complicated wiring. Paired with a CCT LED controller, these sheets let you fine-tune the color temperature from 2700K warm white to 6500K pure white, along with full brightness control. This makes them suitable for shop windows, retail displays, illuminated signage, countertops, and decorative applications that require a soft LED light diffuser sheet effect. Includes: 1 × Dual white light sheet panel 2 × 3P connection cables 2 × 3P input cables 4 / 8 × Anti-collision silicone particles

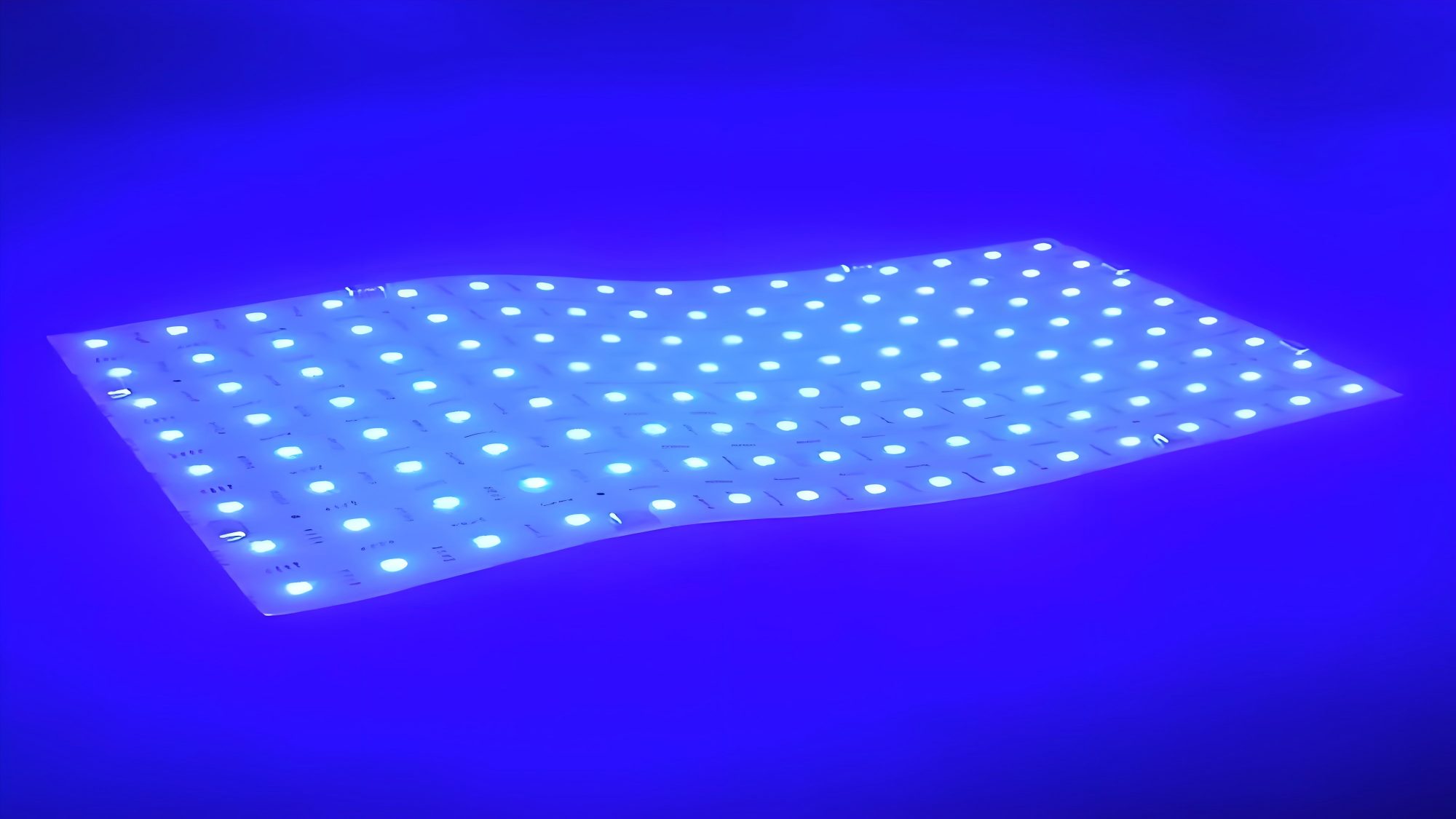

3. RGB LED Panel Sheets – 24V Color-Changing, Cuttable

RGB LED Sheets

Size( L x W ): 490mmx245 mm

LED type: 5050 SMD

LED quantity: 128pcs

Working voltage: DC24V

Power: 45W

Color: RGB

Dimmable: YES

Beam angle: 120°

Waterproof level: IP20 non-waterproof

Lifespan: >35,000 hours

Warranty: 3 years

These sheets pair with RGB LED controllers, enabling static colors, dynamic fades, and adjustable speed and brightness settings. The bendable, cuttable design makes them ideal for custom LED sheet lighting applications such as signage, countertops, display boxes, decorative backlighting, and LED light diffuser sheet installations. For simple installation, each LED light panel sheet comes with strong double-sided adhesive backing. Options include IP20 (indoor) and IP54 (semi-outdoor) protection, giving you flexibility for different project environments. Includes: 1 × RGB LED panel sheet 2 × 4P connection cables 2 × 4P input cables 8 × Anti-collision silicone particles

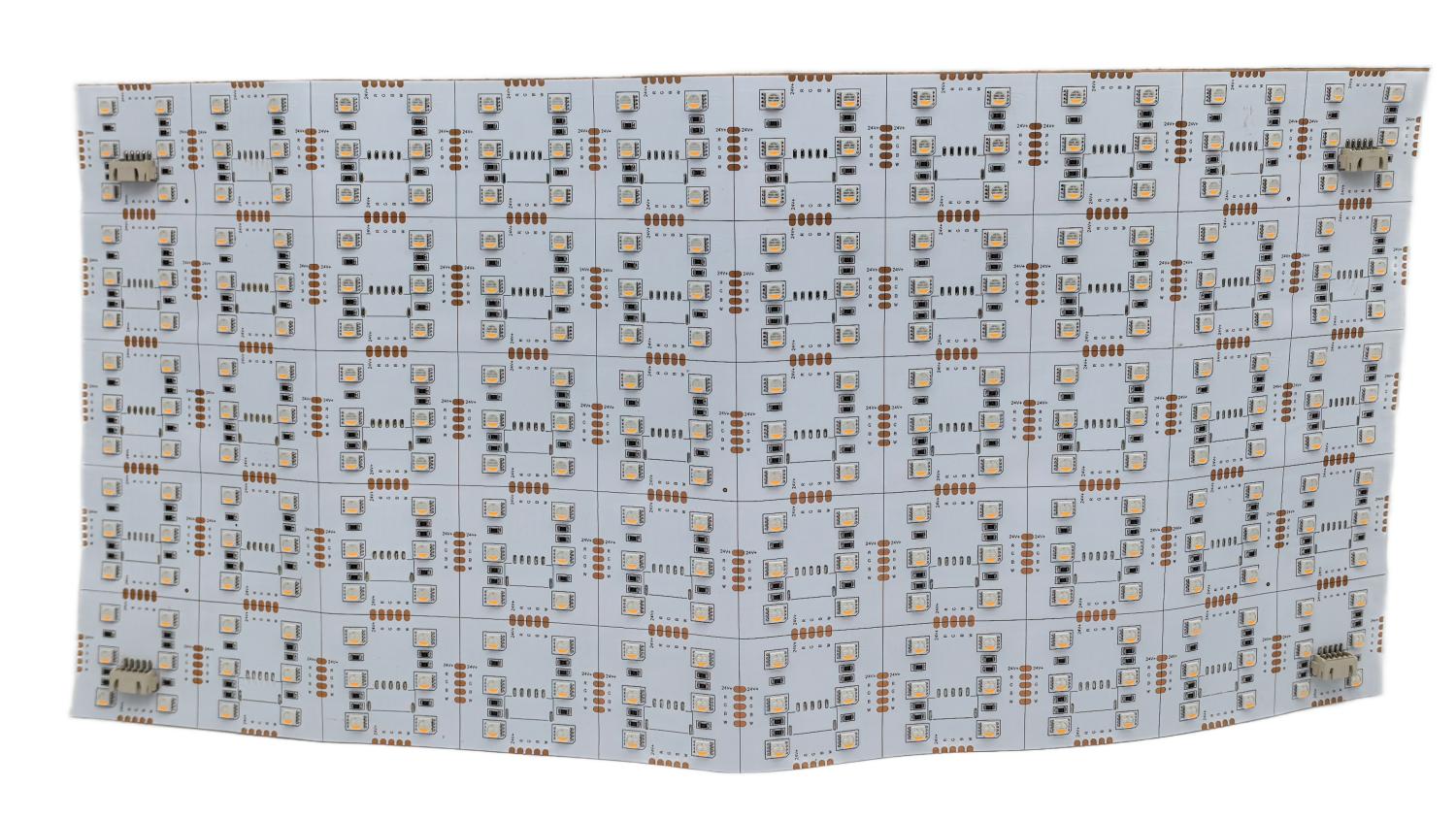

4. RGBW LED Light Sheets – Flexible, 24V, Uniform Backlighting

RGBW LED Sheets Size( L x W ):490mmx250mm

LED type: 5050 RGBW 4 In 1

SMD LED quantity:  288PCS

Working voltage: DC 24V Power: 48W

Emitting color: RGB+3000K, RGB+4000K, RGB+6500K

Light Efficiency: 90LM/W Minimum

Beam angle: 120°

Dimmable: YES

Waterproof Level: IP20 non-waterproof

Warranty: 3 years

Each sheet uses premium 4-in-1 5050 SMD LEDs, combining red, green, blue, and white chips in one package for true RGBW performance. When paired with an RGBW LED controller, you can achieve a wide range of static colors, dynamic modes, and brightness adjustments.

Mounted on a durable dual-layer flexible PCB, the panels can be trimmed along marked cut lines and shaped to fit curved or irregular surfaces. With strong double-sided adhesive backing, installation is quick and hassle-free.

Includes:

1 x DC24V RGBW LED light sheet

2 x 5P connection cables

2 x 5P input cables

4 / 8 x Anti-collision silicone particles

6. Addressable LED Sheets – 12V Digital RGB, Individually Controlled

Addressable LED Sheets

Size( L x W ): 250mmx250mm

LED Type: 5050 SMD

LED quantity: 100pcs

IC type: Built-in WS2812

IC quantity: 100pcs

Color: RGBIC

Working voltage: DC 12V

Current: 1.08A

Power: 13W

Luminous flux: 20lm/LED

Beam angle: 120°

Waterproof Level: IP20 non-waterproof

Lifespan: >35,000 hours

Warranty: 3 years

Each sheet uses 5050 SMD LEDs with built-in WS2812 ICs, enabling pixel-level control for hundreds of dynamic effects and color patterns. The LEDs are evenly distributed on square dual-layer PCB boards, ensuring uniform illumination and stability.

Designed with six connectors (input, output, and power), the panels allow easy linking for large programmable lighting setups. They can be trimmed along marked cut lines and shaped to fit curved or irregular surfaces.

For installation, the sheets feature strong double-sided adhesive backing and pre-drilled mounting holes. Both IP20 (indoor) and IP54 (splash-resistant) versions are available.

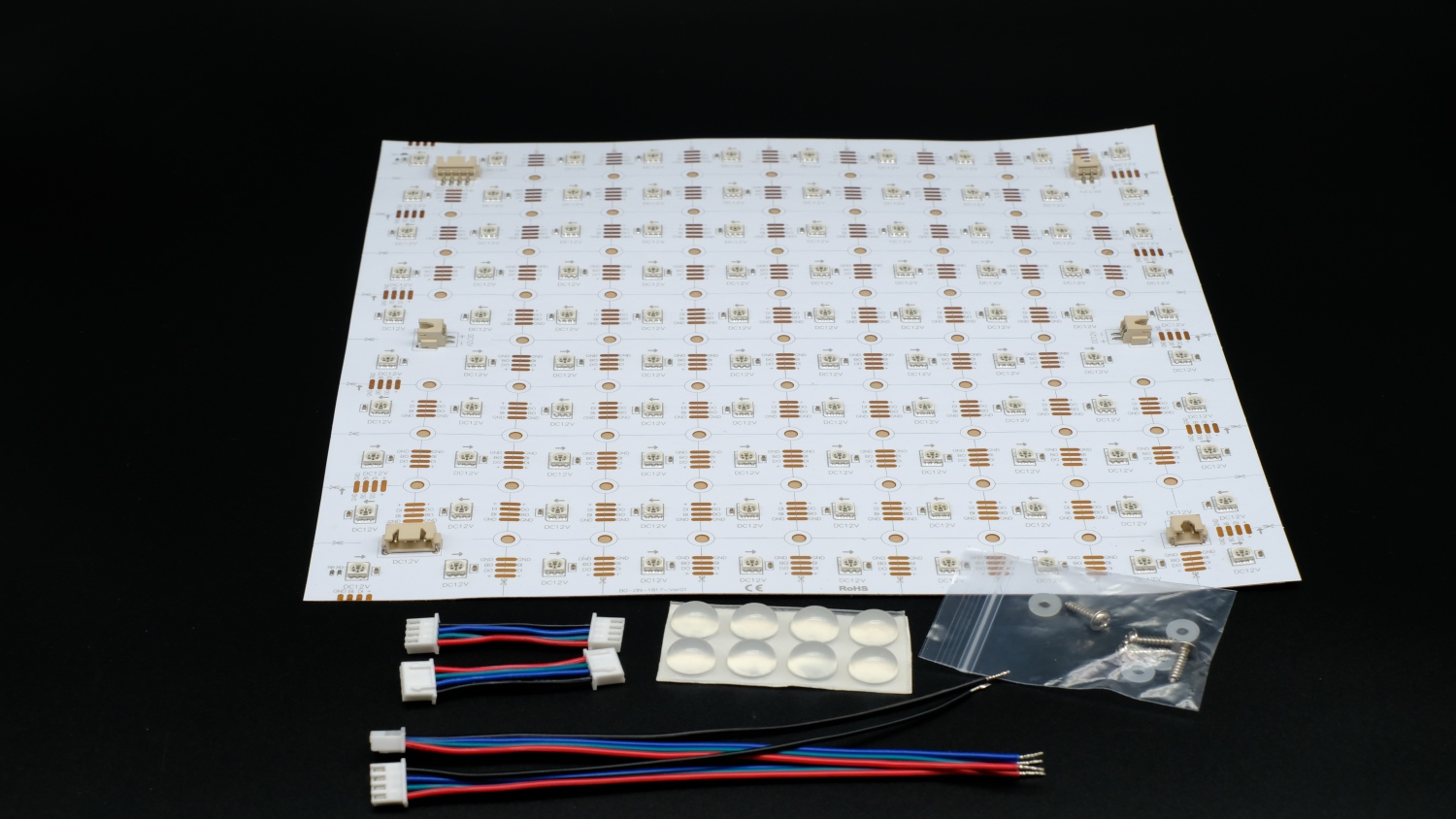

Includes:

1 x Programmable lighting sheet

2 x 4P connection cables

2 x 4P Signal input cables

1 x 2P Power cable

1 X 2P Power connection cable

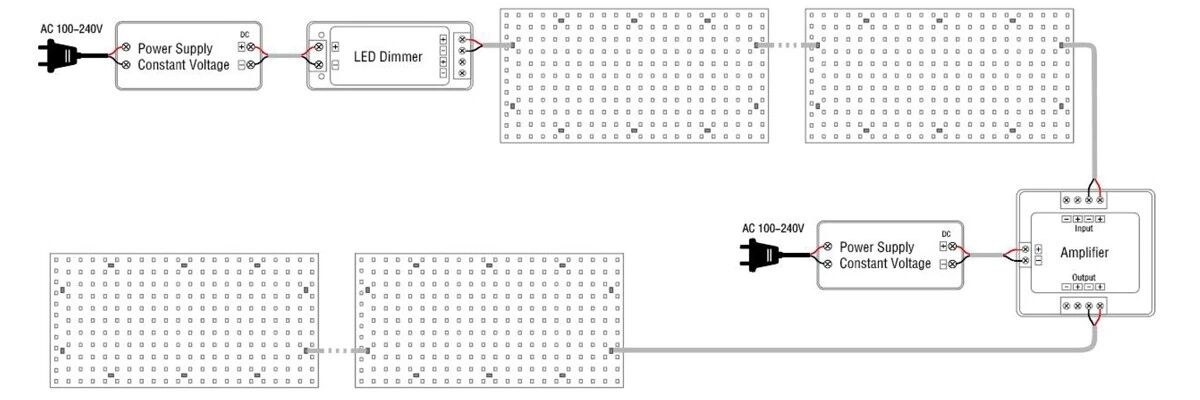

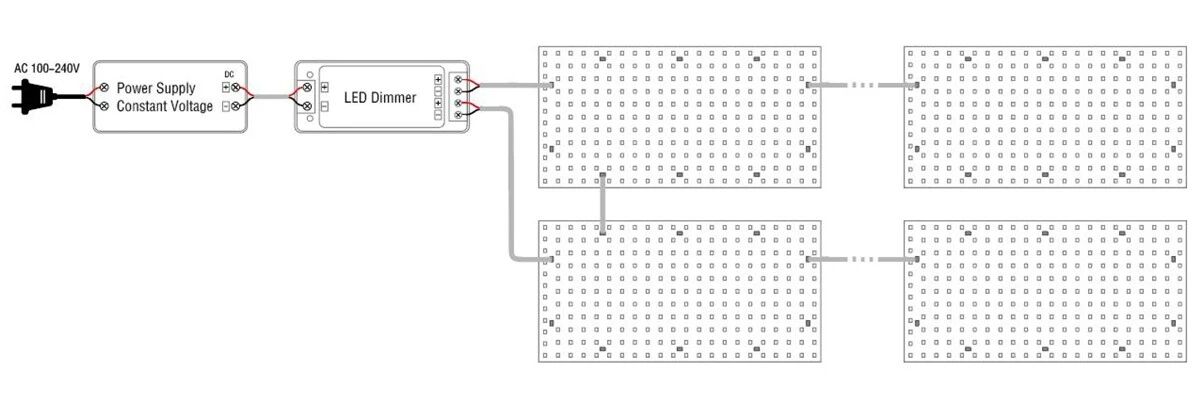

How to Connect LED Sheets

single color

dual-color

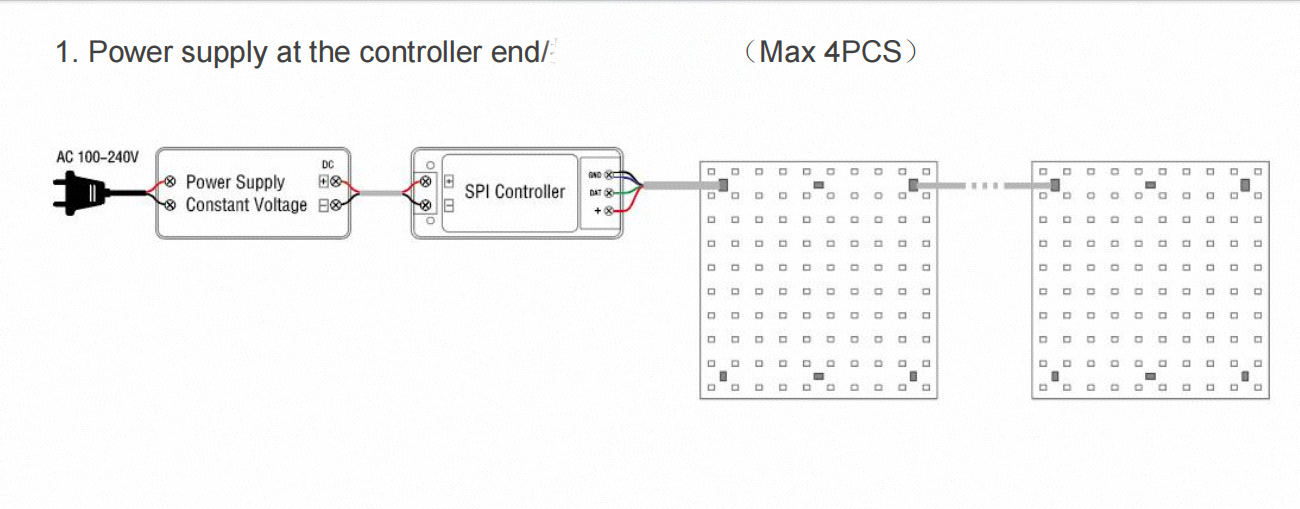

address RGB color

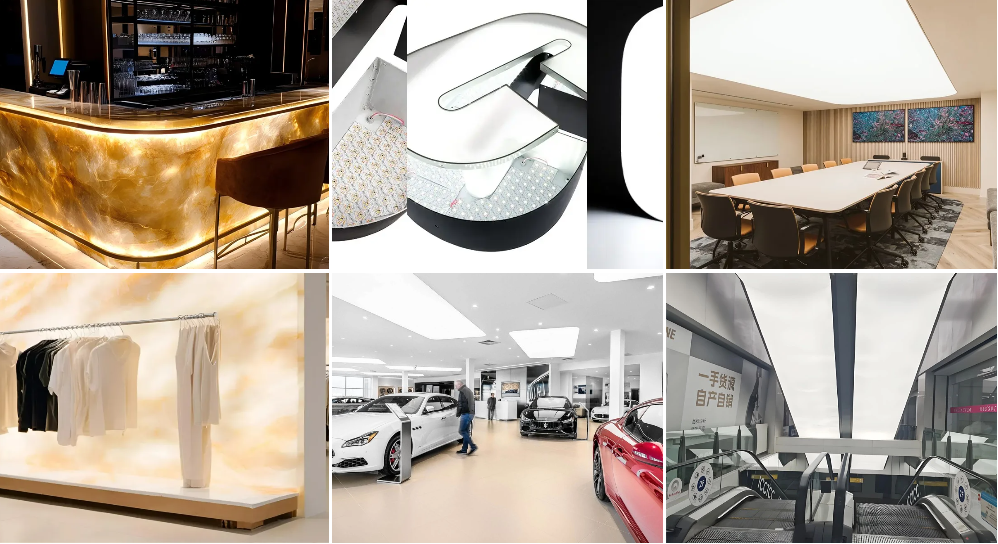

Application:

LED sheet lights are widely used for signage, backlighting, architectural accents, and retail displays. They deliver uniform illumination for translucent materials, illuminated signs, large ceilings, and exhibition setups, making them ideal for both commercial and decorative lighting.
