Classification of LED Neon Flex Lights

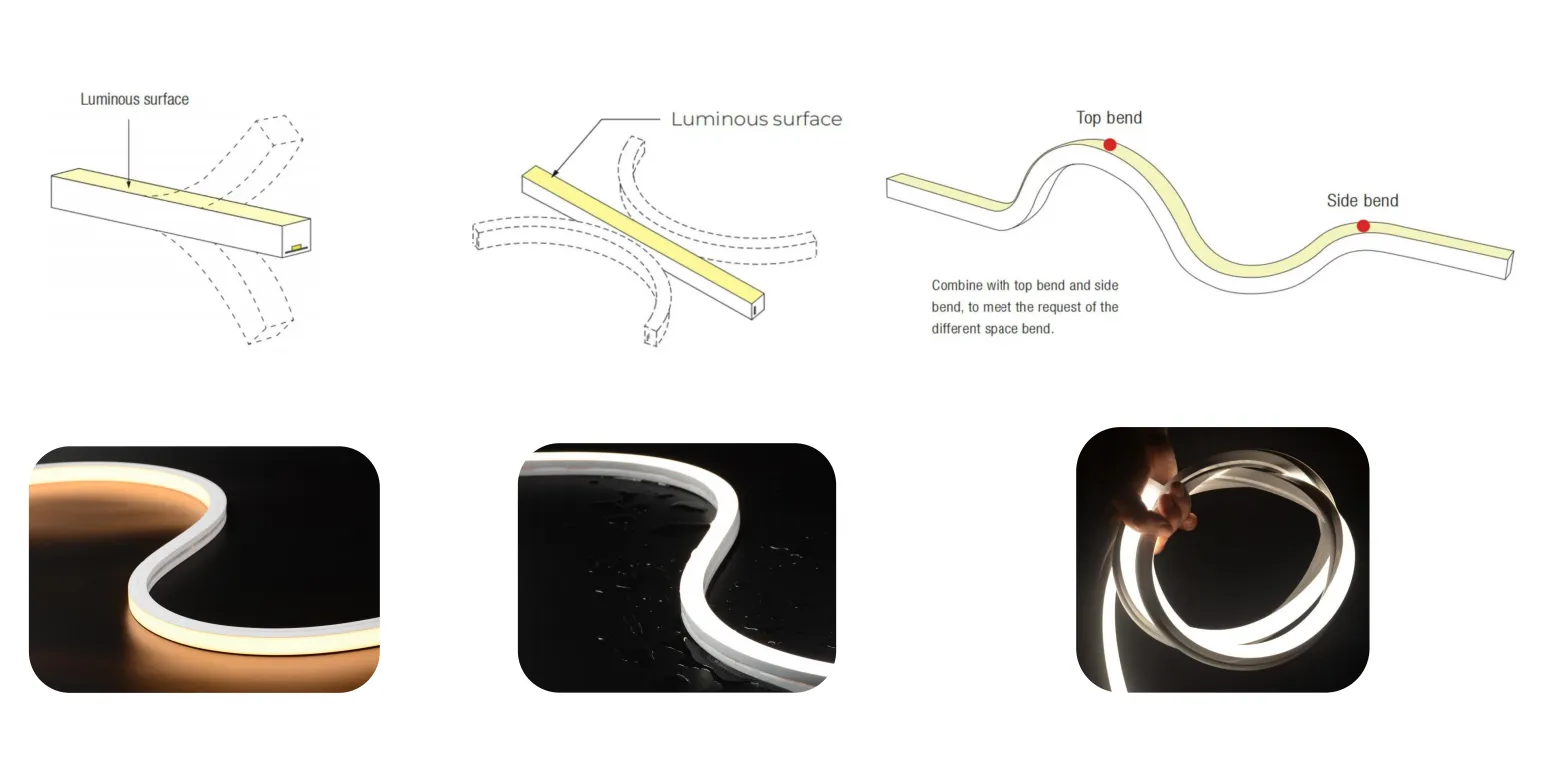

Bending Direction: Horizontal Bending(Side Bending), Vertical Bending(Top Bending), 3D Bending(Horizontal & Vertical Bending), 360 Degree Round

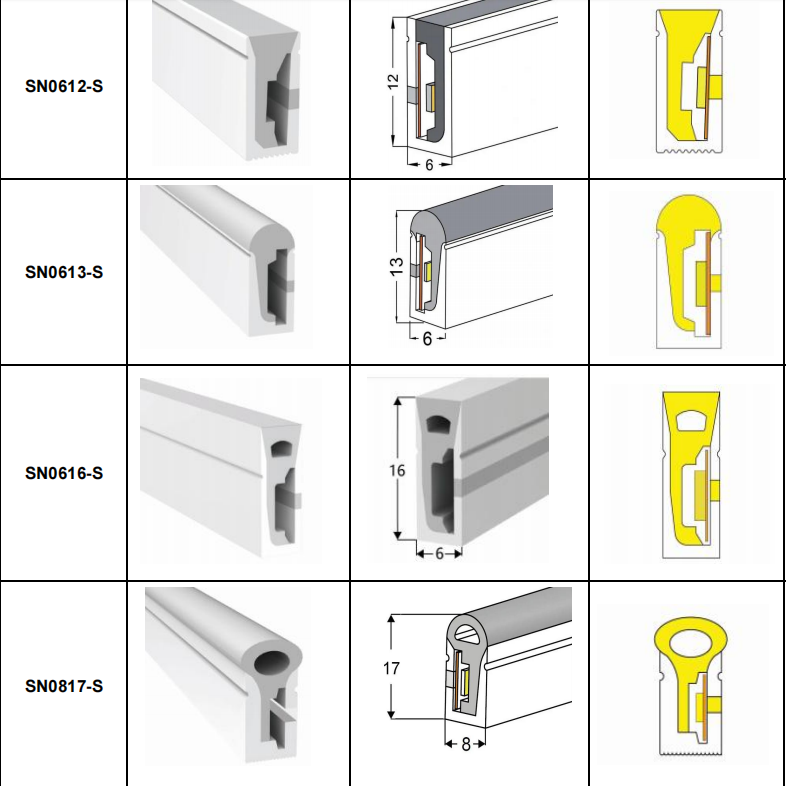

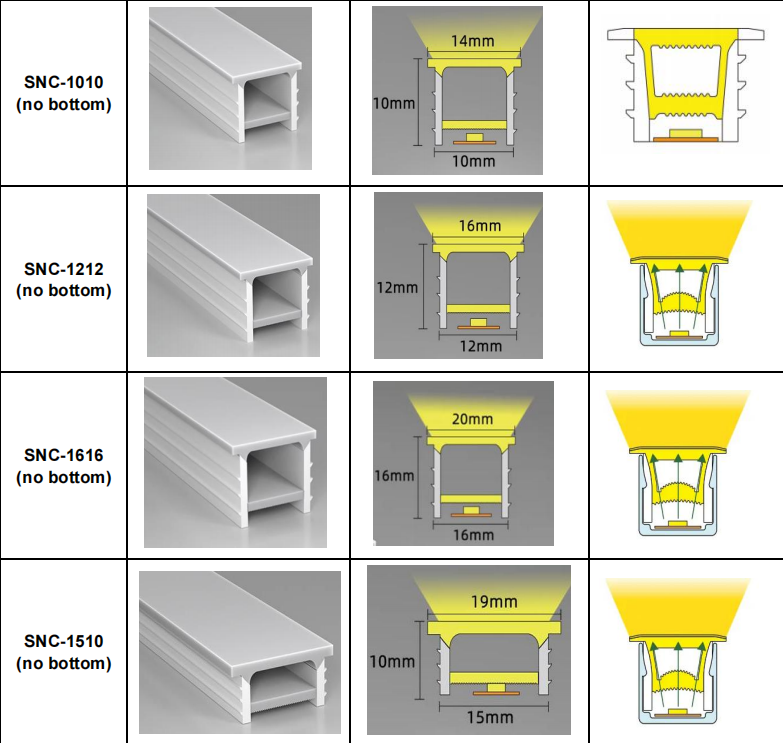

Housing Material: PVC / Silicone / PU(Polyurethane)

Working Voltage: Low voltage(12V/24V/36V/48V), High voltage(120VAC/220VAC)

Light Color: Monochrome, Tunable White, RGB, RGBW, DMX512 Pixel RGB, SPI Pixel RGB

Top Bend Silicone Neon Flex                                                           Side Bend Silicone Neon Flex                                      3D Bend Silicone Neon Flex

What is LED Neon Flex Lights?

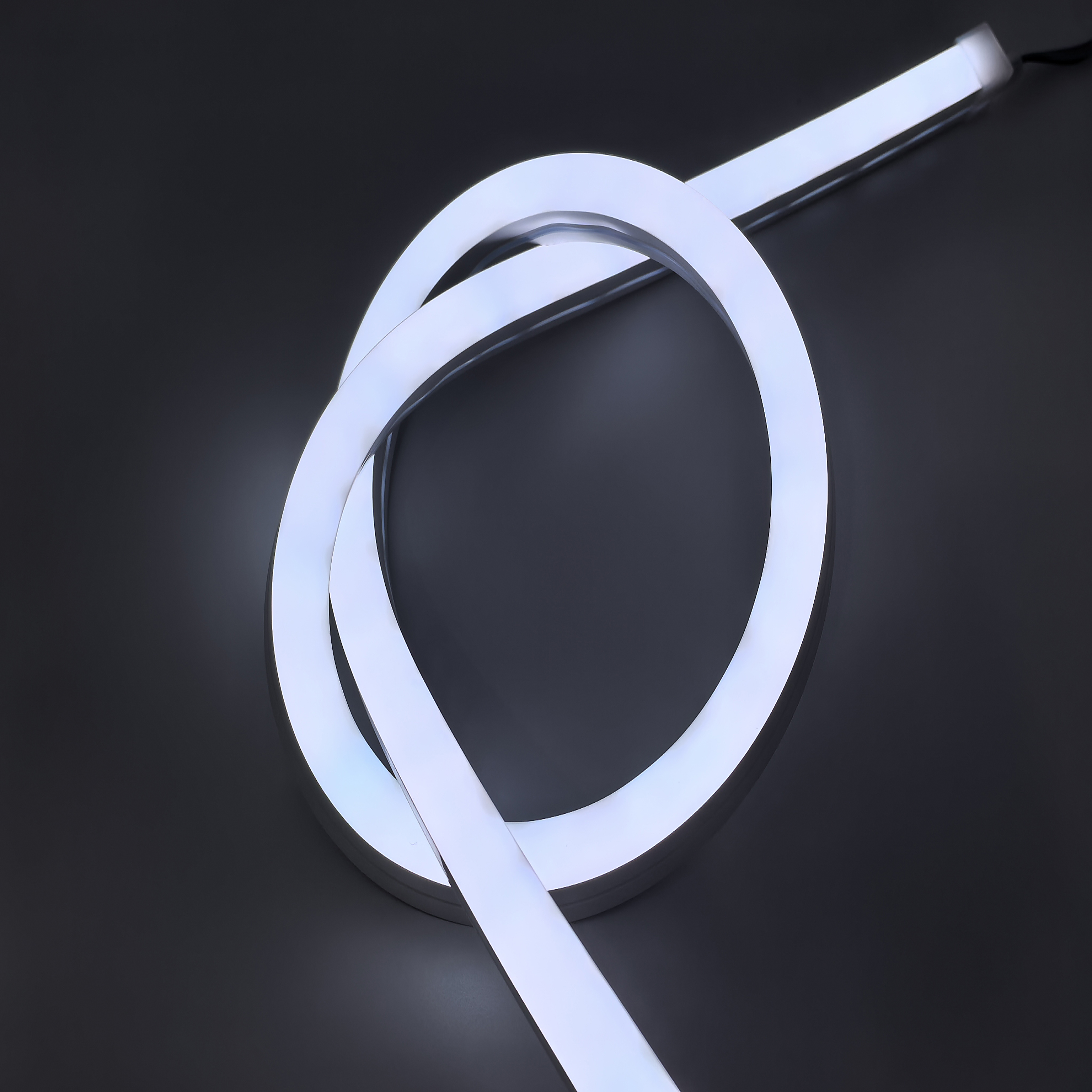

LED Neon Flex Light is a flexible linear uniform light that uses high brightness SMD LED strips as the internal light source and is wrapped with silicone, PVC or PU(Polyurethane) to diffuse the light.

What are the features of LED Neon Flex lights?

1. The working voltage is low because of the LED light source. The power consumption is small and energy-saving. Even in the 24Vdc, it can work well, and its power consumption generally does not exceed 15W per meter.

2. High brightness. The light source is made of ultra-high brightness SMD LEDs, with a density of 120 LEDs per meter, ensuring high brightness and an overall uniform luminous effect.

3. Durable and long life. The light source is made of LEDs, which can last up to 50,000 hours. The flexible silicone/PVC/PU gel is also used, so there is no problem breaking like traditional glass neon light.

4. Flexible, the LED neon flex light can be bent to a minimum diameter of 5CM and sheared.

5. Safe. Unlike traditional glass neon lights, which require a high voltage of up to 15,000V for regular operation, the LED neon flex light operates at 12V or 24V and is safe to use as it will not break and has low heat dissipation.

6. Simple and easy to transport and install. Because the light source is LED and the casing is PVC/Silicone/PU, it will not break during transportation. You only need to fix the mounting clips first or mounting channels, then press the LED flexible neon into mounting clips or mounting channels.

What is the advantages of LED Neon Flex Lights compare with Traditional Neon Lights?

How to cut, solder and power LED Neon Flex Lights?

Step 1. Measure the length

Step 2. Find the cut position on the LED Neon Flex

Step 3. Cut the led LED Neon Flex

Step 4. Cut off some silicone from the LED Neon Flex

Step 5. Soldering cable to LED Neon by electric iron

Step 6. Fill silicone in LED Neon and endcap

Step 7. Light up the LED Neon to test

Step 8. Wait for the silicone to dry and solidif

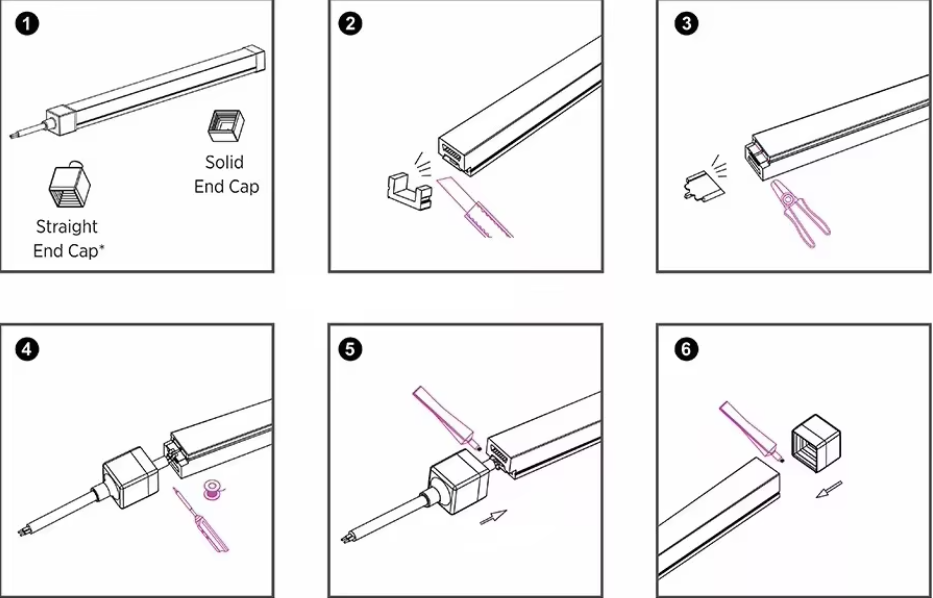

How to install LED Neon Flex Lights?

Step 1: Measure the length

Step 2: Find the cut position on the LED Neon Flex

Step 3: Cut the led LED Neon Flex to size

Step 4: Attach connectors to LED Neon

Step 5: Connect the power plug to LED Neon

Step 6: Use screws to fix the mounting clip or mounting channel to the place you need to install

Step 7: Press the LED neon light into the mounting clip or mounting channel

Step 8: Light up the LED Neon to test

How to connect LED Neon Flex Lights to power supply?

Step 1: Check the working voltage of LED Neon Flex

Step 2: Find a compatible power supply and controllers if need

Step 3: Install the LED Neon Flex on the place your desired

Step 4: Install the power supply and controllers

Step 5: Connect the LED Neon Flex to power supply or controllers

Step 6: Light it up

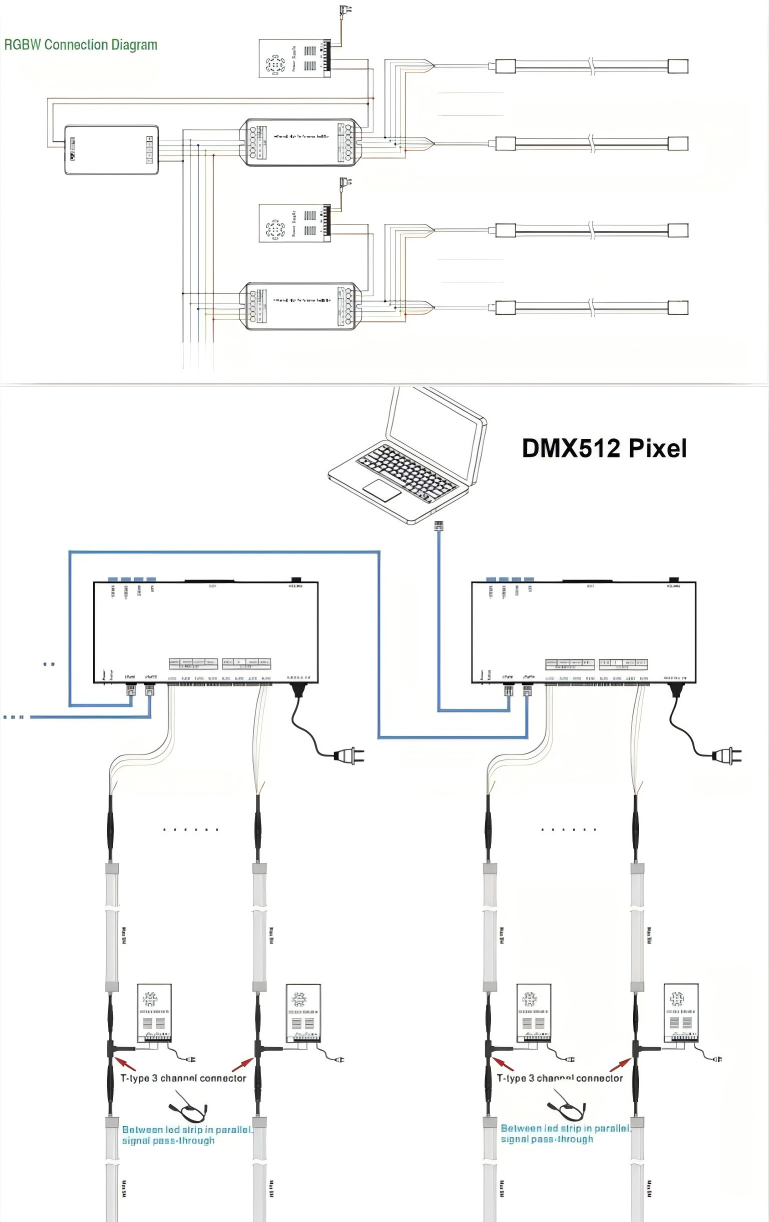

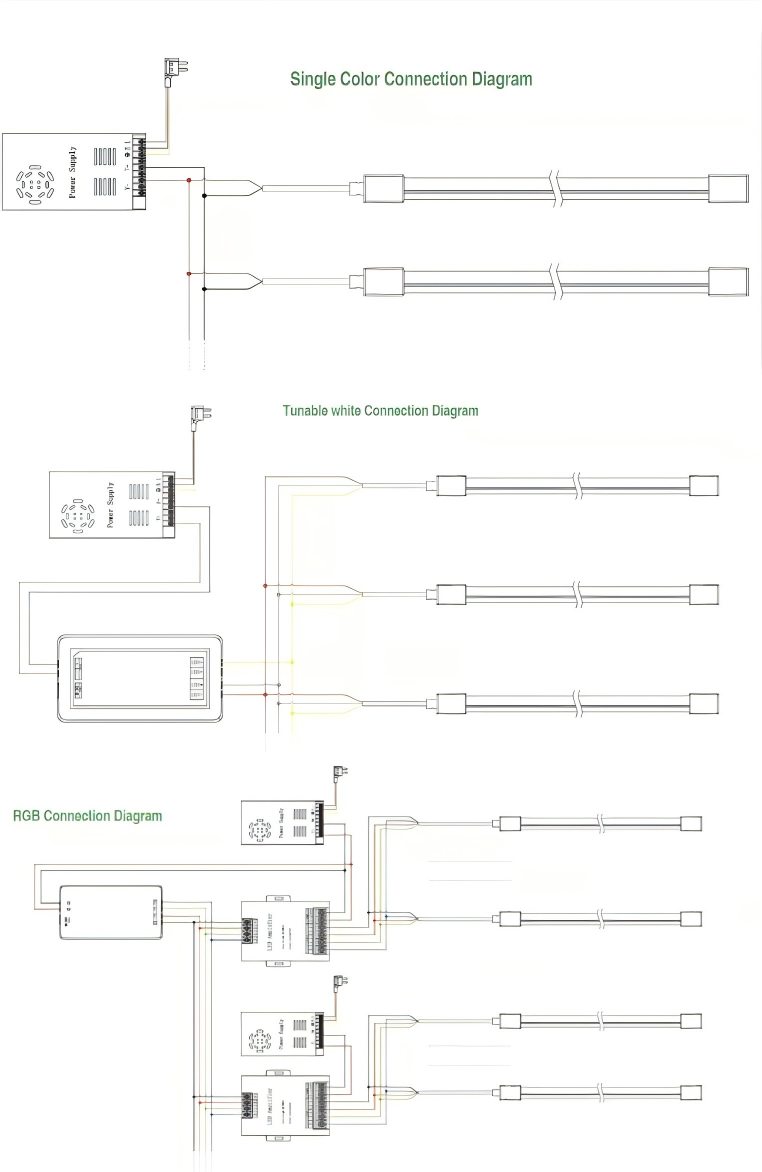

Please check the wiring diagram below:

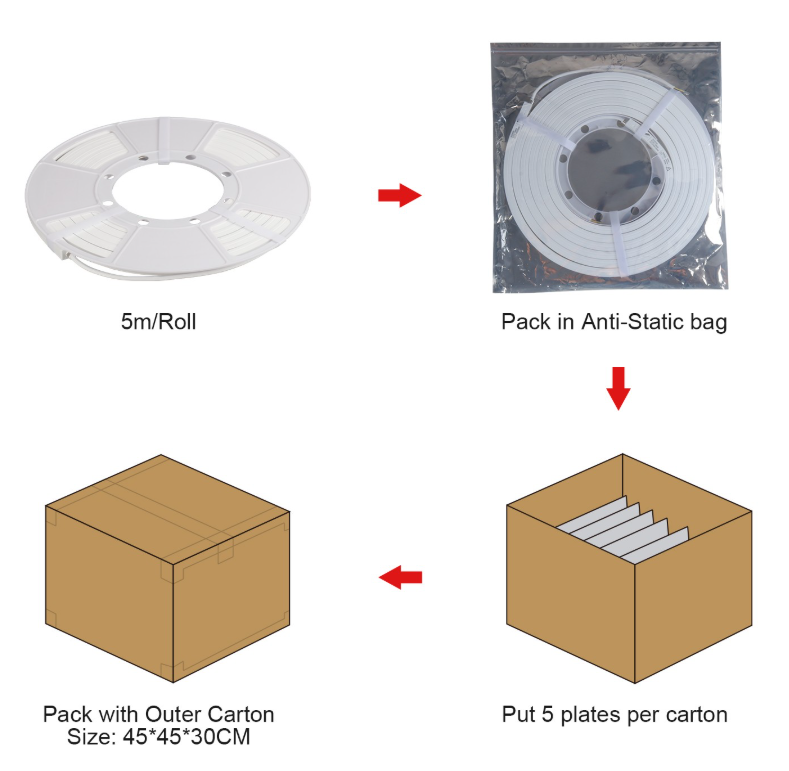

How to package neon light strips

What is LED Neon Flex Lights used for?
