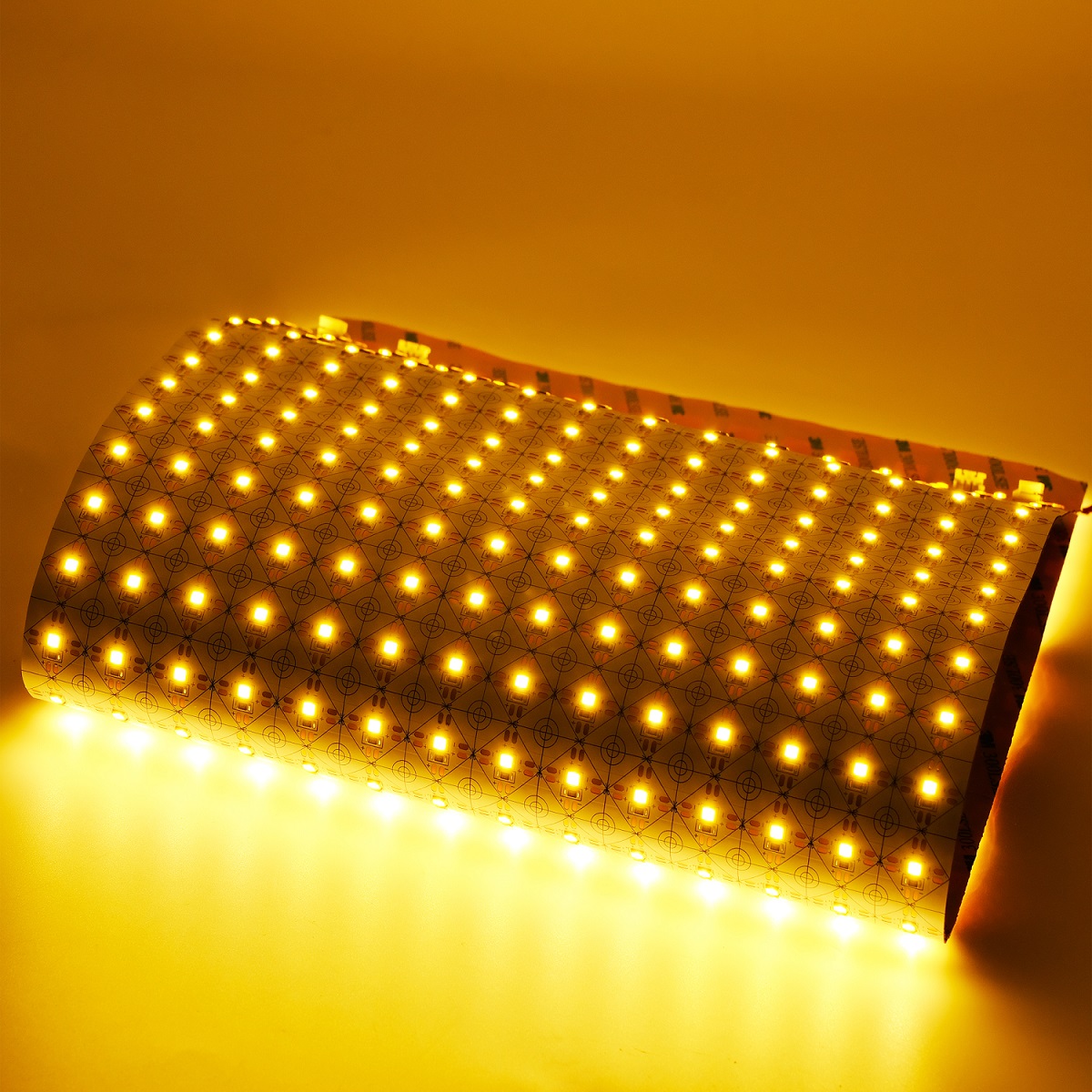

Single Color Flexible LED Light Sheet
• Constant Voltage 24V DC
• 90+ CRI
• Single white / tunable white / RGBW options
• Highly adaptable design accommodates virtually any application
• Power input via onboard connectors or solder pads
• LED lifetime of 50,000 hours (L70)
• 3M adhesive tape for bonding to flat or curved surfaces
• Operating temperature of -20°–45° C
• IP20 environmental rating
Consult us
Introduction
LED Flexible Light Sheets, also called Flexible LED Panel, LED Sheet Panels, LED Paper Sheets, are ultra thin, flexible sheets of LEDs that can be mounted in light boxes, panels, screen, or other backlighting applications. The LED Sheets is thin and cuttable,can be cut to almost every shape, making them applicable to illuminating curved, sloped, or large objects.
Flexible LED light sheets are super slim,thin, easy for benable different shapes, customizable sheets of LEDs that are perfect for various applications, including signage,backlighting, trade show, display, panel, and OEM/ DIY Led lightings.
They can also be folded over edges or wrapped around columns and other curved surfaces. The double-sided adhesive tape on the back allows easy installation with no extra tools needed. The light sheets can also be mounted with screws or nails through the designated areas between each LED.
PART NO. |
Size
(mm) |
LED Type |
LED Qty |
LED Segment |
Voltage |
Power |
CRI |
CCT |
Lumen
(lm/sheet) |
Efficiency (lm/w) |
FL500x235-W420-24V-35W |
500*235 |
SMD2835 |
420leds |
1LED/Seg |
24V |
35W |
90 |
2700K |
3325 |
95 |
FL500x235-W420-24V-35W |
500*235 |
SMD2835 |
420leds |
1LED/Seg |
24V |
35W |
90 |
3000K |
3325 |
95 |
FL500x235-W420-24V-35W |
500*235 |
SMD2835 |
420leds |
1LED/Seg |
24V |
35W |
90 |
4000K |
3640 |
104 |
FL500x235-W420-24V-35W |
500*235 |
SMD2835 |
420leds |
1LED/Seg |
24V |
35W |
90 |
6500K |
3640 |
104 |

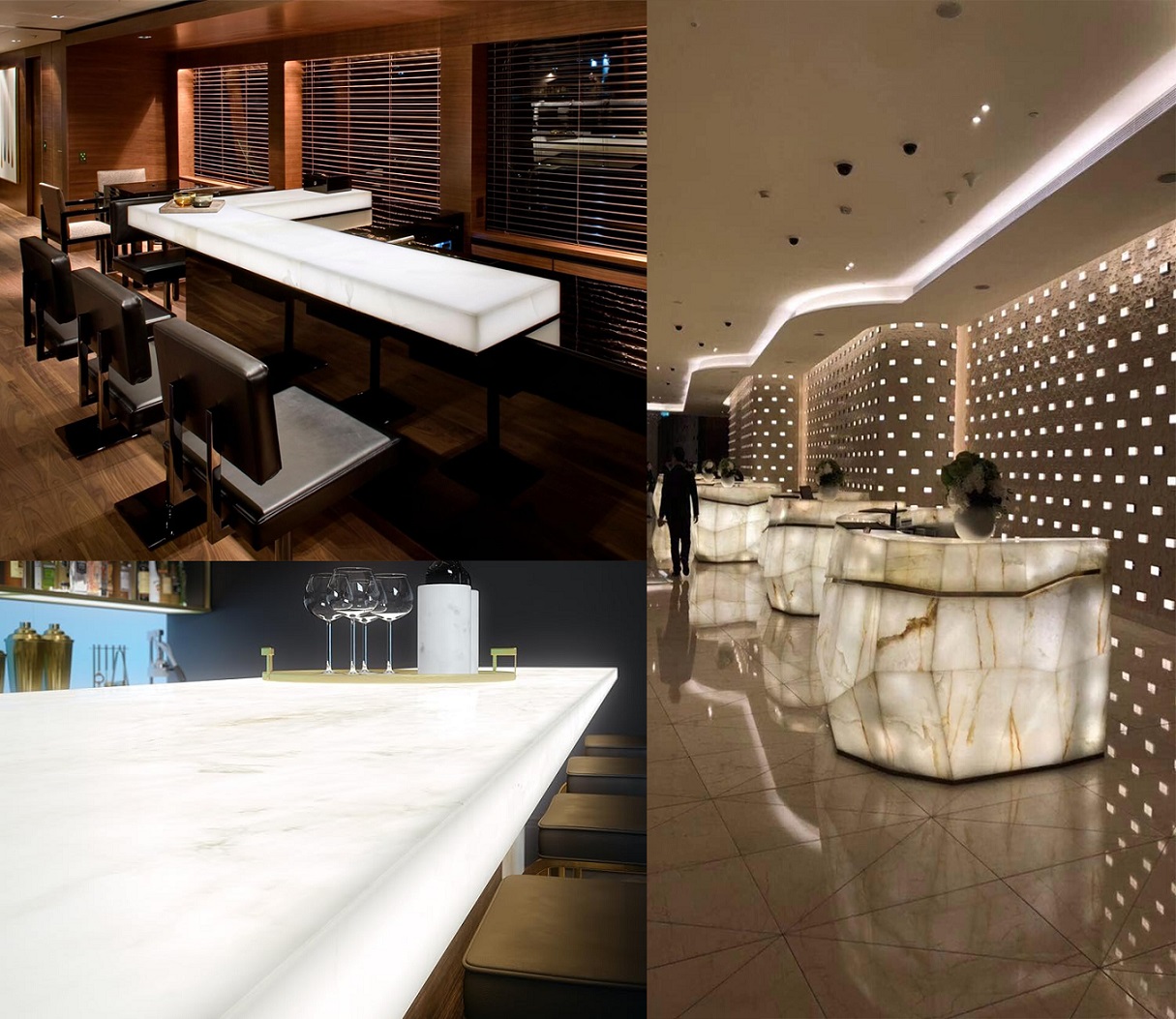

l Applications:
Used for common applications include sign lighting, bias lighting,
cove lighting, task lighting, back lighting, accent lighting, and under cabinet lighting.
Part Number | FL500x235-W420-24V-35W |
---|---|
Voltage | 24V |
Size | 500*235mm |
Color | 2700K/3000K/4000K/6500K |
Power | 35W |
