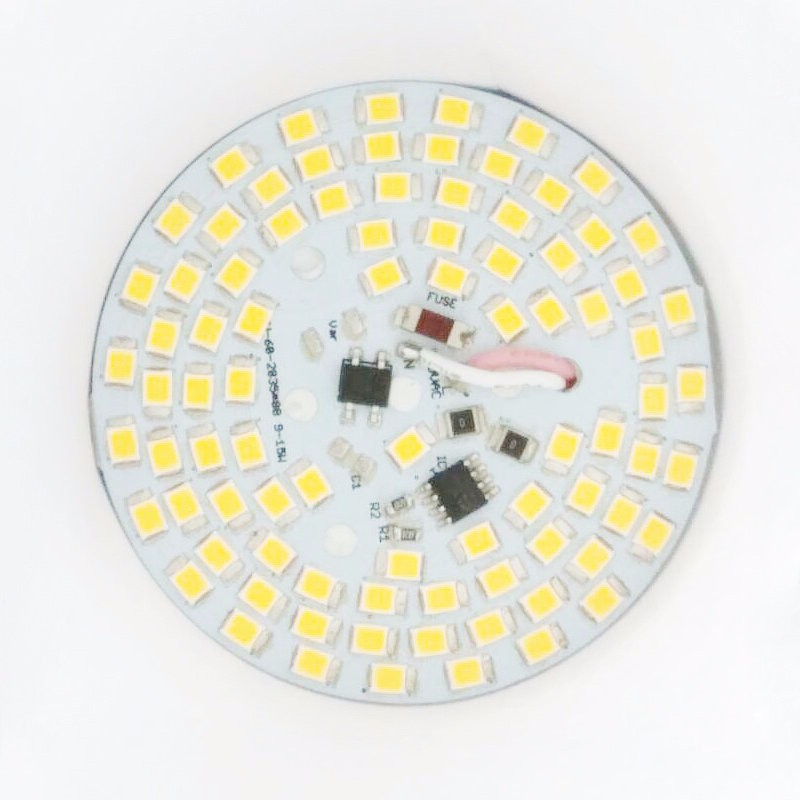

10W 230V Driverless led module

Model: FL-R2835W78H
Size: Φ60mm
Power: 10W
Beam Angle: 120deg
Voltage: 200-240V AC

Introduction



Features:
1) Power 10W,  Luminous flux 1000-1200lm
2) Input: AC200-240V
3) Beam angle: 120°
4) AC 230V directly, Integrated IC chip, without external driver
5) CCT: 3000-3200K (Warm white); 4000-4500K (Neutral white), 6000-7000K(Pure whtie)
6) Efficiency ≥85%
7) support SCR/triac dimming
8) Warranty: 3 years
9) CE & RoHS approval

Application:

Used as the light source for led bulb lights and led downlights

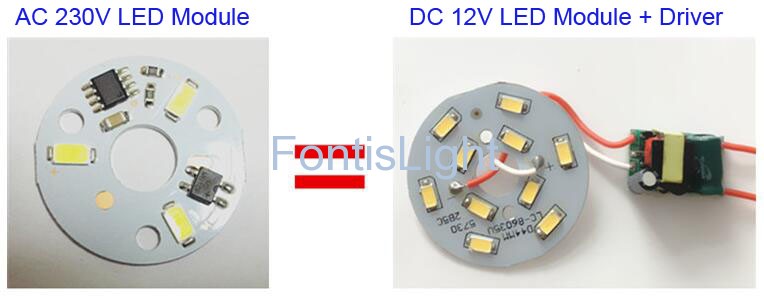

Advanced IC Technology

No electrolytic capacitor
No transformer lead to longer life
Support Triac dimming

Specifications
Model FL-R2835W78H
Size Φ60mm
Power 10W
Beam Angle 120deg
Voltage 200-240V AC
